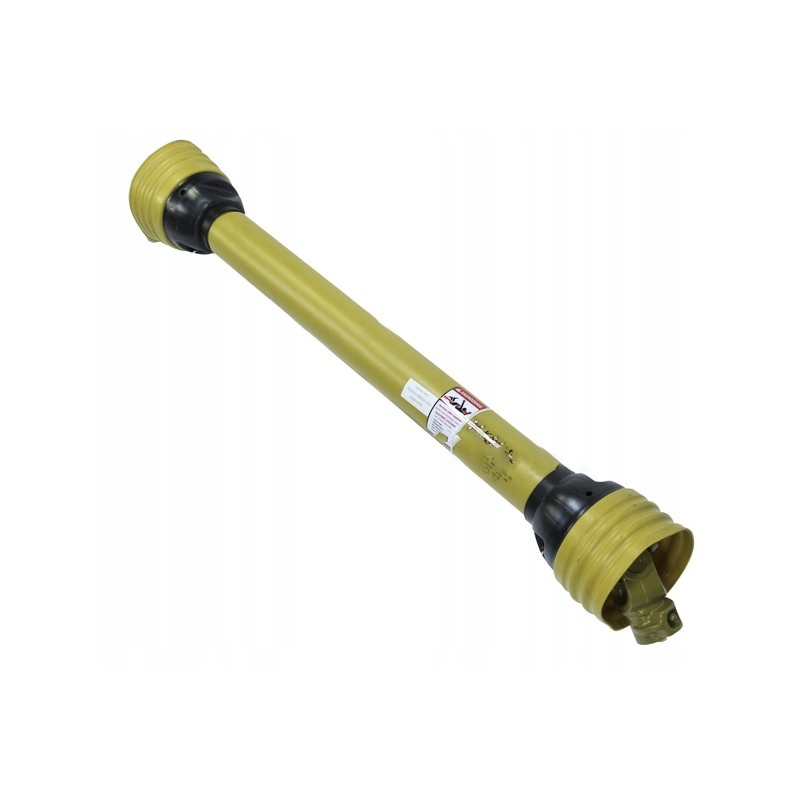

Articulated and telescopic shaft lemon 575nm 1010 157

PTO shaft lemon 575Nm, 1010-1570mm, cross 27x75, X-pin clutch Cardan

Collective packaging: 1 pc.

Weight: 16kg

Article number: WT20-452

EAN code: 6090000343591

CN code*: 8483105090

Product description Continuous operating torque : 575Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 27x74, 6mm

Tube profile: lemon

Inner tube size: 39.5/49/5mm

Outer tube size: 48/57.5/4mm

Tractor protection: side latch

Machine protection: side latch

Clutch type: M8 pin 1400Nm

Working angle: max. 25° (instantaneous max. 45°)

Power at 540 rpm: 32kW

Torque at 540 rpm: 575Nm

Power at 1000 rpm min: 52kW

Torque at 1000 rpm: 450Nm

Shaft length (from the axis of the cross-head to the axis of the cross-head):

minimum: 1010mm

maximum: 1570mm
