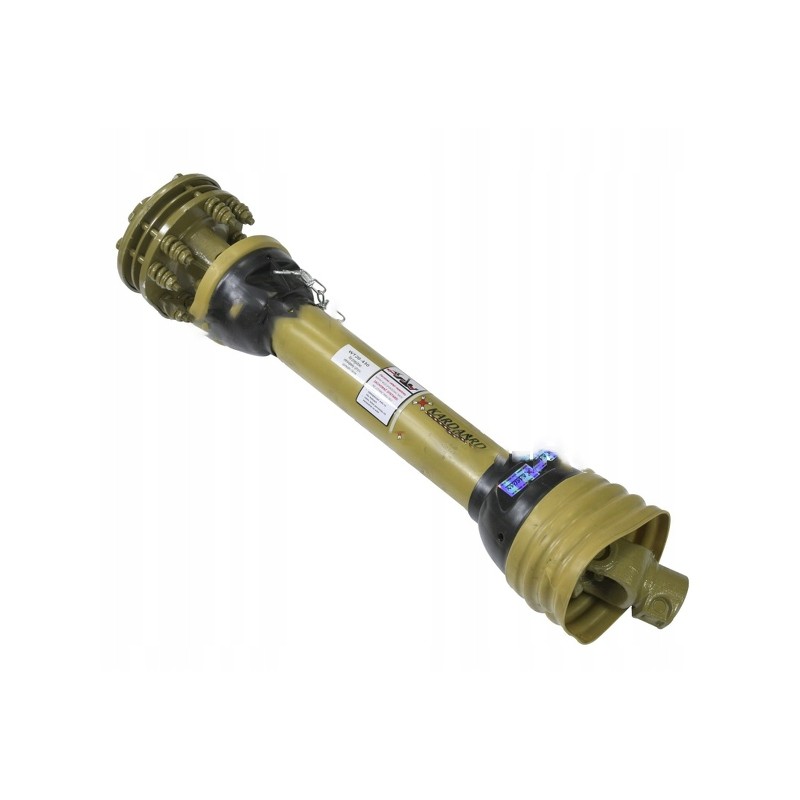

Articulated telescopic shaft lemon 575nm 610 872m

PTO shaft lemon 575Nm, 610-872mm, cross 27x75, friction clutch %

Article number: WT20-430

EAN code: 6090000347261

CN code*: 8483105090

Product description Continuous operating torque: 575Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 27x74.6mm

Pipe profile: lemon

Inner pipe dimensions: 39.5/49/5mm

Outer pipe dimensions: 48/57.5/4mm

Tractor protection: side latch

Machine protection: side latch

Clutch type: friction 900Nm, disc fi140mm

Working angle: max. 25° (instantaneous max. 45°)

Power at 540 rpm: 32kW

Torque at 540 rpm: 575Nm

Power at 1000 rpm min: 52kW

Torque at 1000 rpm: 450Nm

Shaft length (from the axis of the cross-head to the axis of the cross-head):

minimum: 610mm

maximum: 900mm
