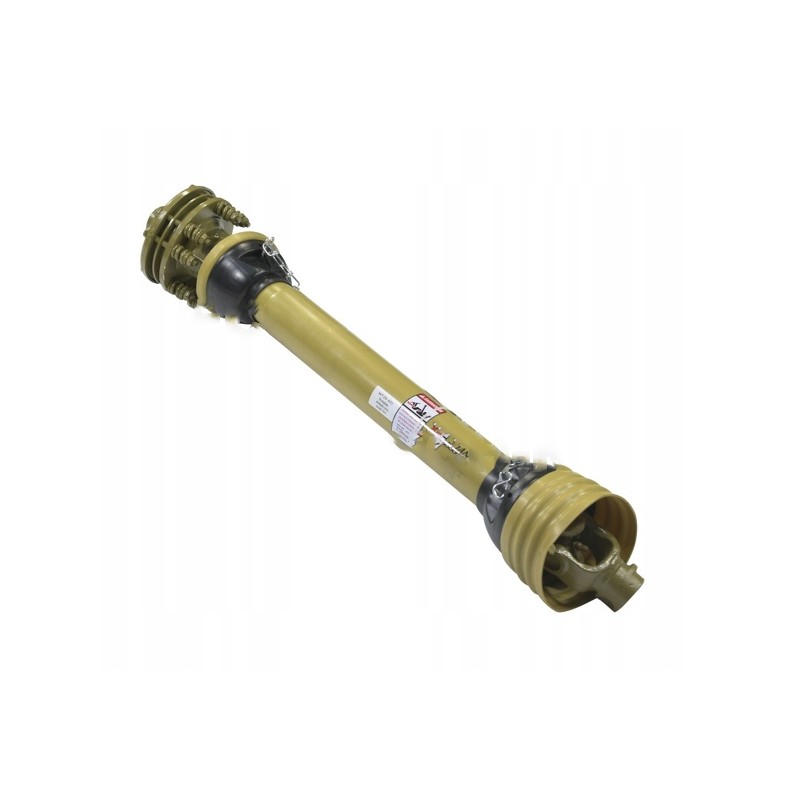

Articulated and telescopic shaft lemon 575nm 810 1230

PTO shaft lemon 575Nm, 810-1230mm, cross 27x75, friction clutch %

Article number: WT20-431

EAN code: 6090000347278

CN code*: 8483105090

Product description Continuous operating torque: 575Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 27x74.6mm

Pipe profile: lemon

Inner pipe dimensions: 39.5/49/5mm

Outer pipe dimensions: 48/57.5/4mm

Tractor protection: side latch

Machine protection: side latch

Clutch type: friction 900Nm, disc fi140mm

Working angle: max. 25° (instantaneous max. 45°)

Power at 540 rpm: 32kW

Torque at 540 rpm: 575Nm

Power at 1000 rpm min: 52kW

Torque at 1000 rpm: 450Nm

Shaft length (from the axis of the cross-head to the axis of the cross-head):

minimum: 810mm

maximum: 1230mm

About the manufacturer 200 employees on an area of over 20,000. square meters to be able to produce for global markets, which are the USA, Germany, Japan, Italy, Australia and the Middle East.

Since 2019, X KARDAN has also been present with its products in Poland, providing the highest quality in accordance with its ISO 9001/TS16949 at competitive prices also on the Polish market.

* The CN code is provided for information purposes only in accordance with the information we received from suppliers and we are not responsible for its correctness. CN code numbers may change due to the lack of clear supplier declarations and official interpretations.
