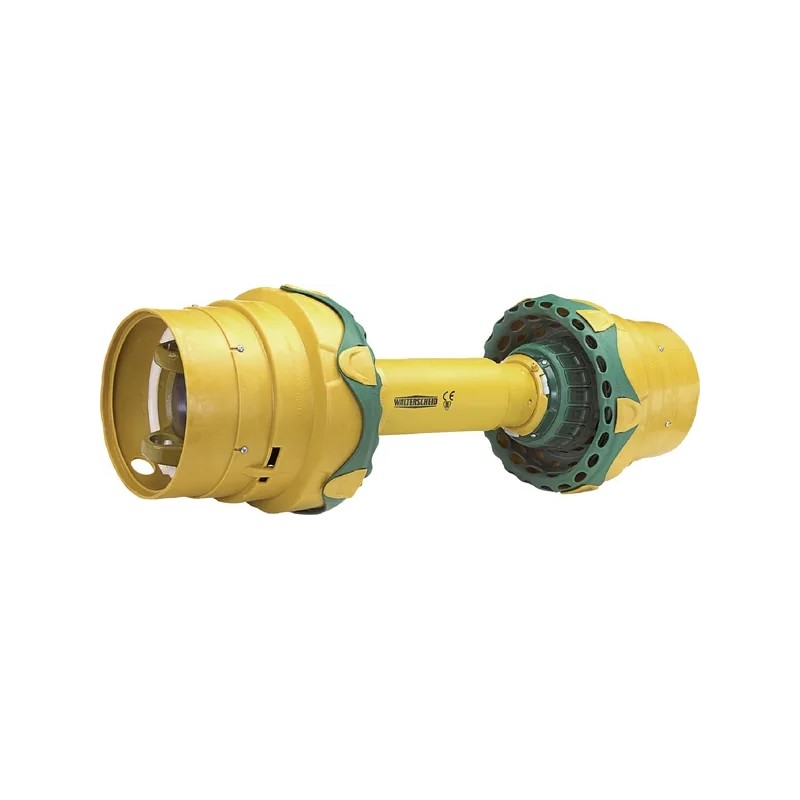

PTO shaft without forks wwz 2380 l 1210 mm shaft

PTO shaft without forks WWZ 2380 L=1210 mm Walterscheid

Part number: K. WWZ23801210OG

EAN:

Unit: Piece

Type of connection on the tractor side: Wide-angle without crosses

Accessories on the tractor side: n/a

Type of connection on the machine side: Wide-angle without crosses

Accessories on the side machines: n/a

Shaft size: WWZ 2380

Length: 1210mm

Power at 540 rpm: 28kW

Power at 1000 rpm: 44kW

Diameter of the cross bush on the tractor side - longer part: 24mm

Diameter of the cross bush on the tractor side: 27mm

Length of the cross on the tractor side tractor side - longer part: 91mm

Length of the cross on the tractor side: 75mm

Diameter of the cross bush on the machine side - longer part: 24mm

Diameter of the cross bush on the machine side machine side: 27mm

Length of the cross on the machine side - longer part: 91mm

Length of the cross on the machine side: 75mm

External pipe profile type: 1G< p>

Internal pipe profile type: OvGA

Pipe profile shape: Lemon

Max. static torque: 1600N m

Cover type : SD15

OE reference number: 1800130

Related articles you can find in our other offers:

Spare parts

Shaft cross , Ø 24x75.0 mm / Ø 27x91.0 mm, 2380 Walterscheid 2106141

Fork, double, 24 mm, W2380 Walterscheid 219105

Fork, for profiled pipe, for spring pin, 34.50 mm, W2380 Walterscheid 2111810

Fork, for profile pipe, for spring pin, 41 mm, W2380 Walterscheid 2112810

Walterscheid protective cover, 1Z FLEXO, L-1000 mm, W2280 series /W2380 SD151000WWEFLEX

Walterscheid protective cap, SD25 FLEXO, D-150 mm, L-147 mm, W2380 series 850104

Sc15 ring 828313

Chain 600 mm 823608

Accessories

Shaft cross, Ø 24x75.0 mm / Ø 27x91.0 mm, 2380 Walterscheid 2106141
