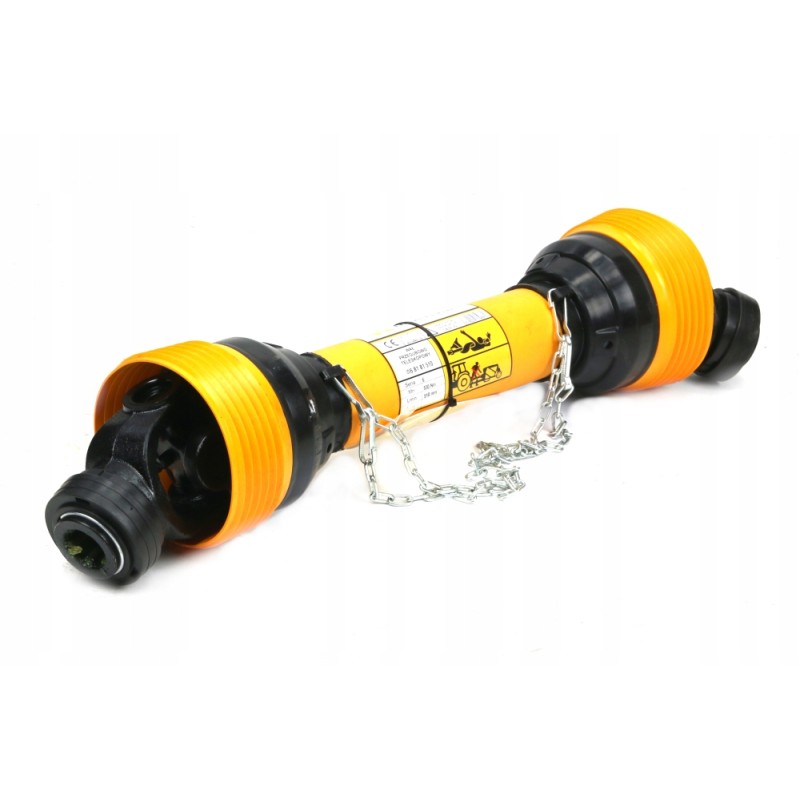

Articulated and telescopic shaft 510 710mm 830n 6r

PTO shaft 510-710mm 830N CE 2020 series 6R WARYŃSKI W6B1B1510 PTO shaft 510-710mm 830N CE 2020 series 6R WARYŃSKI W6B1B1510 Shaft made according to the new PN-EN-12965_2020 standard . Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

*Specification:

*Type of telescopic connector: Triangular pipe -

*Works with: External fork - WR227601, Cross connector - WR219601, Internal pipe fork. - WR219607, Widłak pipe external - WR219606, Internal pipe - WR2363355, WR2140600, Outdoor pipe - WR2362385, WR2141600, housing - WR22961129, -

* *Trubmia of the wall pipe wall: 5.5 mm

*Outer tube wall thickness: 4 mm

*Clutch opening torque: None -

*Clutch: None -

*Maximum length: 710 mm

*Minimum length: 510 mm

*Inner tube thickness: 45 mm

*Outer tube thickness: 54 mm

*Power nominal: 47 64 KW HP

*Mounting to the machine: 1 3/8' Z6' inch

*Mounting to the tractor: 1 3/8' Z6' inch

* Torque: 830 Nm

* Working angle: Max 17° -

* Bearing diameter: 30.2 mm

* Cross height: 91.4 mm

*Interchangeable indexes: PTO shaft 510-710mm 830N CE series 6 WARYŃSKI 80210

-️Application: Forage chopper Mower Tandem spreader Adapter for corn harvesting Bison Barrel wagon< p>

*Producer: Waryński Original
