PTO shaft without forks wwz 2480 l 1210 mm shaft

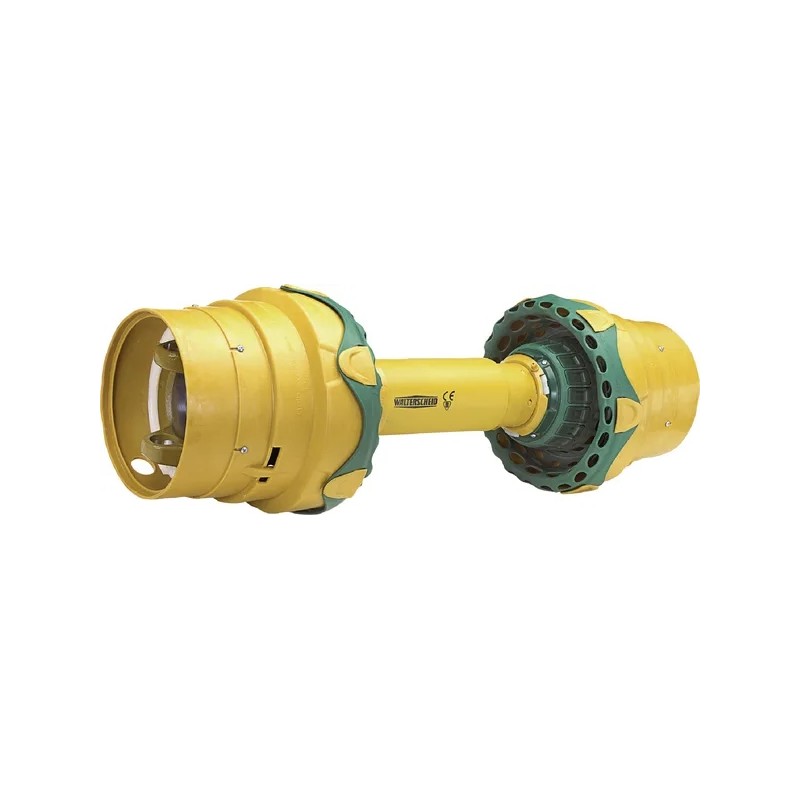

PTO shaft without forks WWZ 2480 L=1210 mm Walterscheid

Part number: K. WWZ24801210OG

EAN:

Unit: Piece

Type of connection on the tractor side: Wide-angle without crosses

Accessories on the tractor side: n/a

Type of connection on the machine side: Wide-angle without crosses

Accessories on the side machines: n/a

Shaft size: WWZ 2480

Length: 1210mm

Power at 540 rpm: 39kW

Power at 1000 rpm: 61kW

Diameter of the cross arm sleeve on the tractor side - longer part: 27mm

Diameter of the cross head sleeve on the tractor side: 32mm

Length of the cross head on the tractor side tractor side - longer part: 94mm

Length of the cross on the tractor side: 76mm

Diameter of the cross bush on the machine side - longer part: 27mm

Diameter of the cross bush on the machine side machine side: 32mm

Length of the cross on the machine side - longer part: 94mm

Length of the cross on the machine side: 76mm

External pipe profile type: 2aG< p>

Internal pipe profile type: 1bGA

Pipe profile shape: Lemon

Max. static torque: 2400N m

Cover type : SD25

OE reference number: 1800132

Related articles you can find in our other offers:

Spare parts

Shaft cross , Ø 27x76.0 mm / Ø 32x94.0 mm, 2480 Walterscheid 3506141

Fork, double, 27 mm, W2480 Walterscheid 354105

Fork, for profiled pipe, for spring pin, 49x39.5 mm, W2480 Walterscheid 351310

Fork, for profiled pipe, for spring pin, 57.50x48 mm, W2480 Walterscheid 351410

Protective cover Walterscheid, FLEXO, L-1000 mm, W2480/W2580 series SD251000WWZFLEX

Walterscheid protective cap, SD25 FLEXO, D-167 mm, L-186 mm, W2480 series 850102

Walterscheid slip ring, SD25, D-175 mm, W2480/P480 series 828314

Chain 600 mm 823608

Accessories

Shaft cross, Ø 24x75.0 mm / Ø 27x91.0 mm, 2380 Walterscheid 2106141< p>
