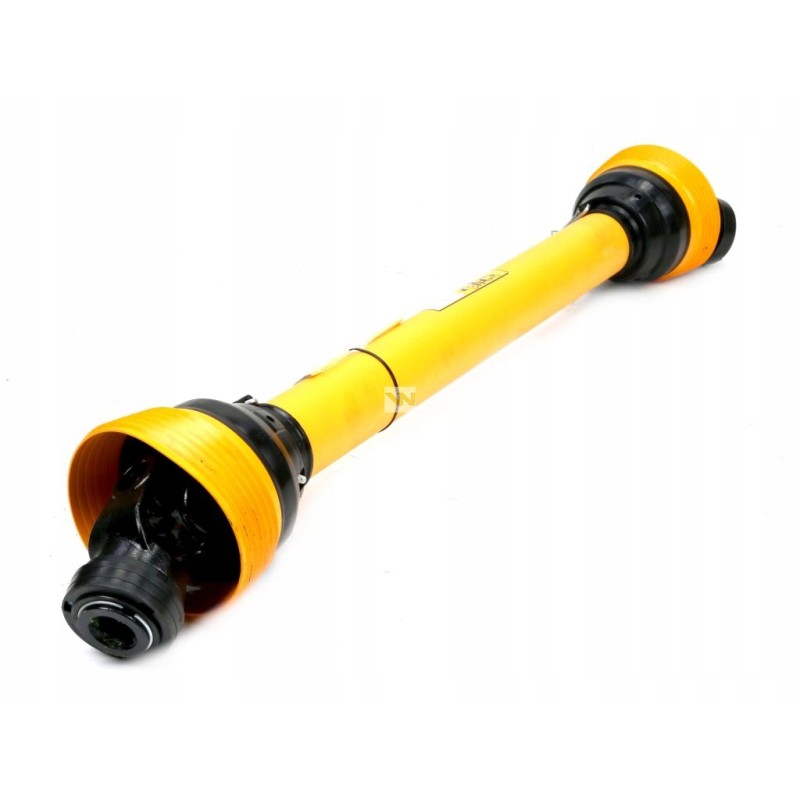

Articulated and telescopic shaft 860 1250mm 620nm 5r

PTO shaft 860-1250mm 620Nm 60250 CE 2020 series 5R WARYŃSKIIndex W5B1B1860

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Mounting to the tractor: 1 3/8' Z6

Mounting to the machine: 1 3/8' Z6

Type of telescopic connector: Triangular tube

Minimum length: 910 mm

Maximum length: 1250 mm

Nominal power: 620 Nm

Clutch: None

Clutch disengaging power: None

Inner tube thickness: 45 mm / 3.8 mm

Outer tube thickness: 51.5 mm / 3 mm

Bearing diameter: 30.2 mm

Cross height: 79.4 mm
