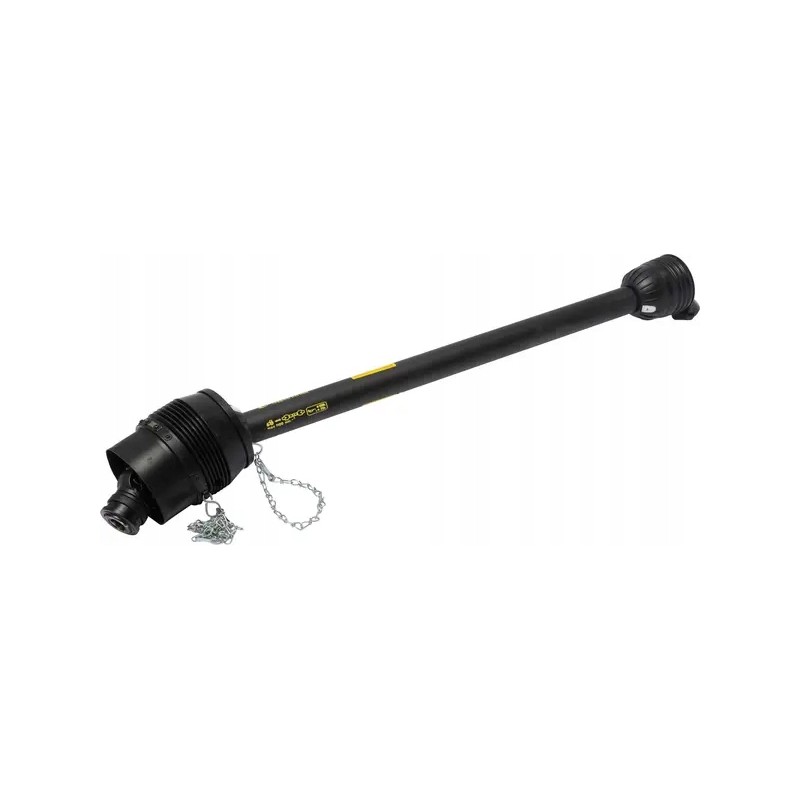

Wide angle joint shaft t cvj 60 l 860 mm width

Wide-angle joint shaft T CvJ 60 L=860 mm, Comer quick-connect fork

Part number: K. TCVJ600860ENC02C12

EAN:

Unit: Piece

Application:

Feed wagon

Slurry barrel

Harvesters for harvesting root crops

Self-loading wagon

Properties:

Lubrication frequency: 8 hours

CE marked

Technical information:

Maximum deflection angle for long-term use: 25°

The deflection angle may only be 80° for a short time

Observe the Comer operating instructions

Max. dynamic power 540 rpm: 47 kW, 830 Nm

Max. dynamic power 1000 rpm: 74 kW, 710 Nm

Values at a deflection angle of 5° and a service life of 1000 hours

Outer diameter of the connection on the tractor side: 1-3/8 inch

Number of connection keys on the tractor side: 6

Type of connection on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Machine side connection OD: 1-3/8 inch

Number of machine side connection keys: 6

Machine side connection type: Flanged gate valve

Machine side accessories: Quick-connect fork

Shaft size: T CvJ 60

Length: 860mm

Power at 540 rpm: 47kW

Power at 1000 rpm: 74kW

Diameter of the cross bush on the tractor side - longer part: 30.2mm

Diameter of the cross bush on the tractor side: 30.2mm

Length of the cross on the tractor side - longer part: 101.4mm

Length of the cross on the tractor side: 95.4mm

Diameter of the cross bush on the machine side: 30.2mm

Length of the cross on the machine side: 92mm

Wall thickness of the outer tube: 3.7mm

Larger external diameter of the outer tube: 54mm

Wall thickness of the inner pipe: 4.3mm

Larger outer diameter of the inner pipe: 45.6mm

Pipe profile shape: Triangular

Dynamic torque max. : 1450N m

Reference number OE: 78610860EN00209204
