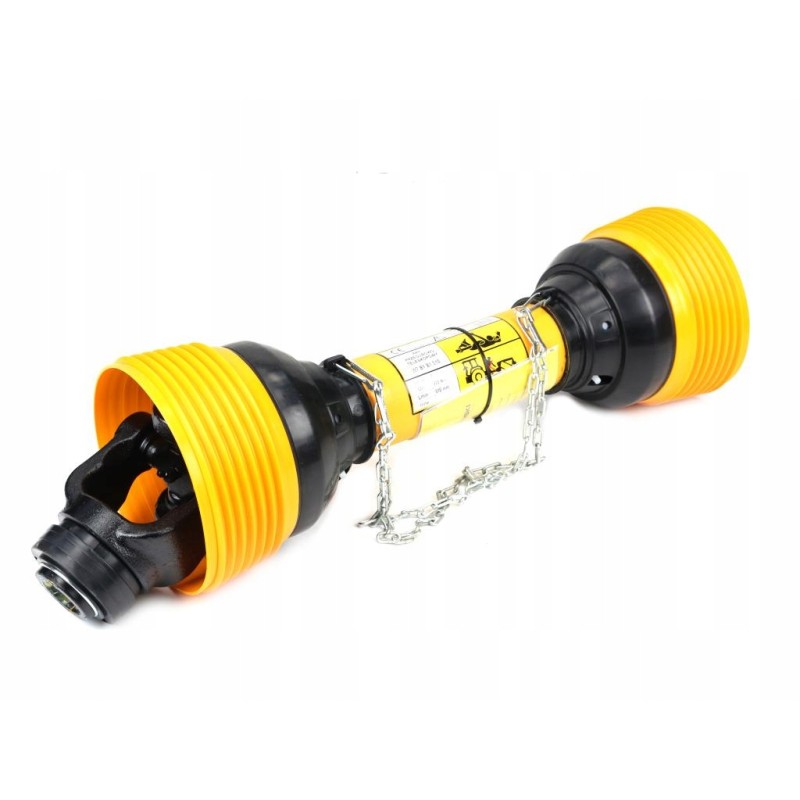

PTO shaft 660 880mm 970nm Warynski

PTO shaft 660-880mm 970Nm CE 2020 series 7R WaryńskiType of telescopic connector: Triangular pipe

Works with: External fork - WR227701, Cross fork - WR219701, External pipe fork - WR219706, Internal pipe fork. - WR219707, Inner pipe - WR2363505, Outer pipe - WR2362535, Housing - WR22971129

Inner pipe wall thickness: 5.5 mm

Outer pipe wall thickness: 4 mm

Clutch disengaging torque: None Nm

Machine side clutch: None

Tractor side clutch: None

Maximum length: 880 mm

Minimum length: 660 mm

Inner tube thickness: 45 mm

Outer tube thickness: 54 mm

Nominal power: 55 KW (75 HP) )

Mounting to the machine: 1 3/8' - Z6 inch

Mounting to the tractor: 1 3/8' - Z6 inch

Torque: 970 Nm

Working angle: Max 17°

Bearing diameter: 30.2 mm

Cross height: 106 mm
