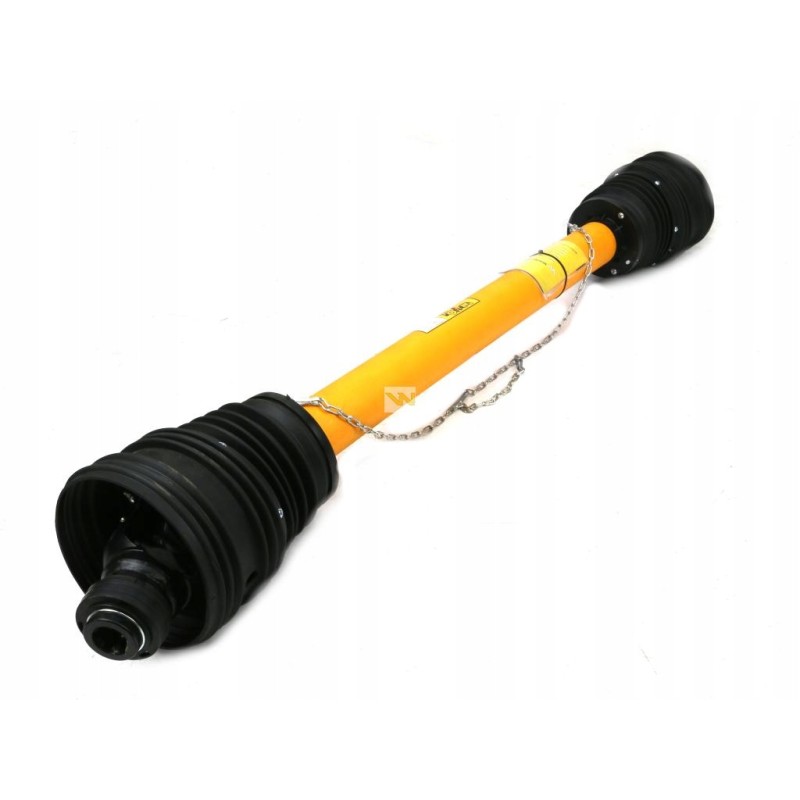

Articulated and telescopic shaft 1010 1560mm 830nm

PTO shaft 1010-1560mm 830Nm wide-angle on both sides CE 2020 series 6R WARYŃSKIThe shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Mounting to the tractor: 1 3/8\' Z6

Mounting to the machine: 1 3/8\' Z6

Type of telescopic connector: Triangular tube

Minimum length: 1010 mm< p>

Maximum length: 1550 mm

Nominal power: 830 Nm

Clutch: Wide-angle on both sides

Clutch disengaging power: None

Inner tube thickness: 45 mm / 5.5 mm

Outer tube thickness: 54 mm / 4 mm

Bearing diameter: 30.2 mm

Height of the cross: 91.4 mm
