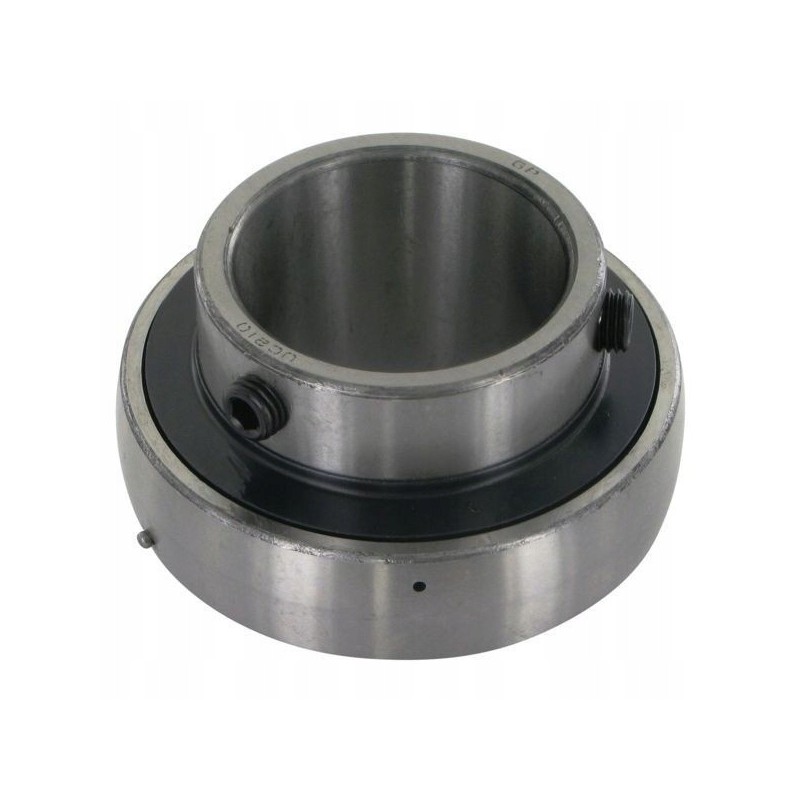

Uc210gp bearing insert

Bearing insert INDEX: UC210GP

Features: - Double-sided extended inner ring with 2 pressure screws - Convex outer ring with lubrication holes - Double-sided sealed

Inner diameter: 50 mm

Application: - Construction of mobile machines - Stationary machine construction

Outer diameter: 90 mm

Width of the outer part: 23 mm

Width internal part: 51.6mm

Dimension from the axis of the balls to the end of the mounting sleeve: 19mm

Distance from the axis of the mounting screw to the edge: 9mm

Dimension from the axis of the balls to the end of the internal part: 32.6 mm
