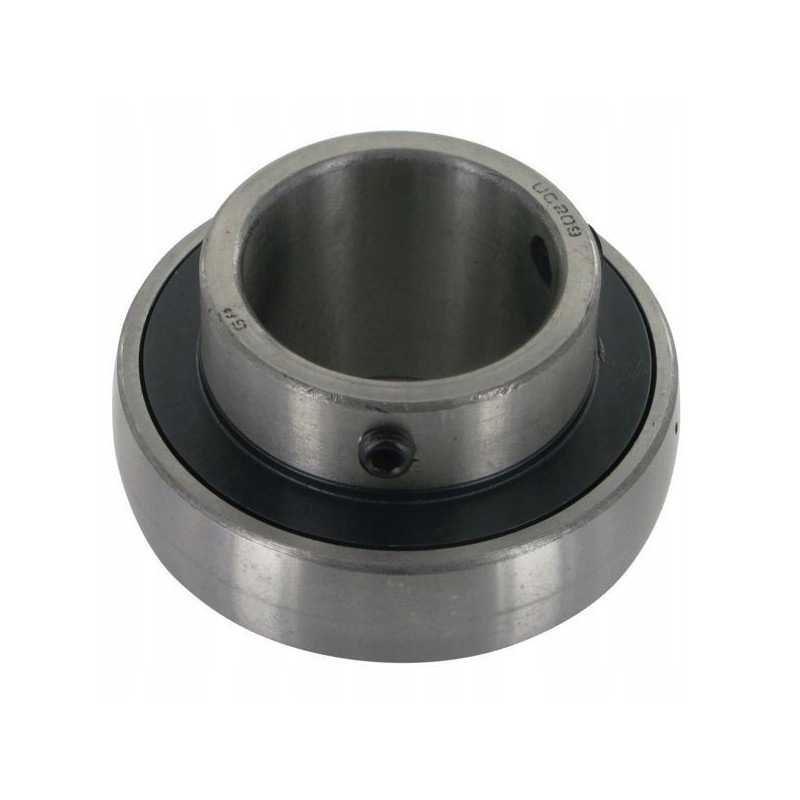

Uc209gp bearing insert

Bearing insert INDEX: UC209GP

Features: - Double-sided extended inner ring with 2 pressure screws - Convex outer ring with lubrication holes - Double-sided sealed

Inner diameter: 45 mm

Application: - Construction of mobile machines - Stationary machine construction

Outer diameter: 85 mm

Width of the outer part: 22 mm

Width internal part: 49.2mm

Dimension from the axis of the balls to the end of the mounting sleeve: 19mm

Distance from the axis of the mounting screw to the edge: 8mm

Dimension from the axis of the balls to the end of the internal part: 30.2 mm
