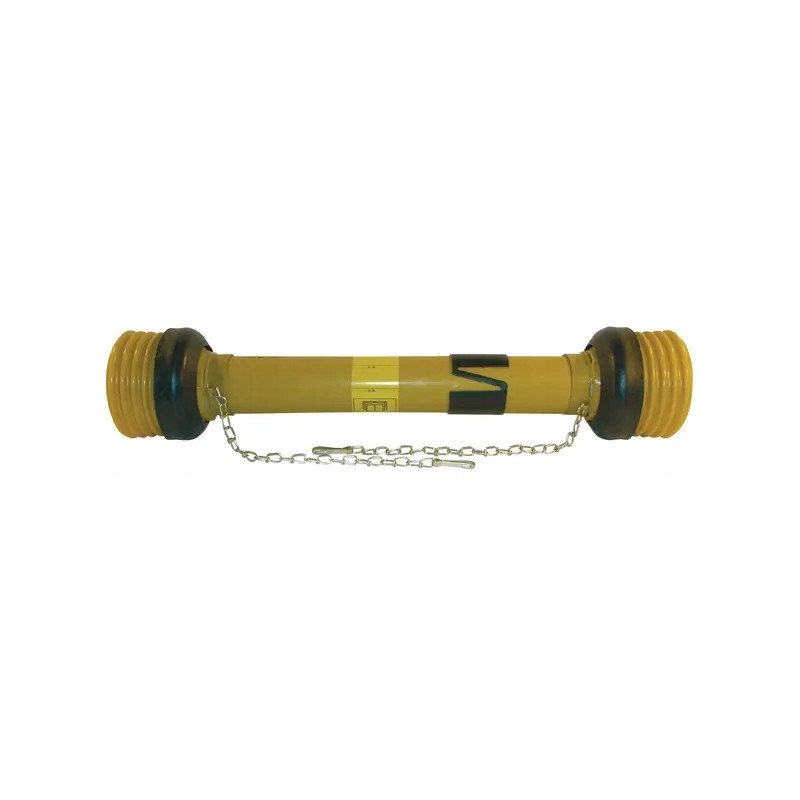

Cardan shaft without forks w2600 l 860 mm walters

PTO shaft without forks W2600 L=860 mm Walterscheid

Part number: K. W2600860OG

EAN: 8435194174145

Unit: Piece

Application:

Heavy soil tillage machines

Wood chippers

Stem grinder

Features:

Lubrication frequency from 50 to 100 hours

Meets the requirements of the EC directive 89/392 EEG

Meets the requirements of the EN12965 safety standard

CE mark is present

Technical information:

Follow the Walterscheid operating instructions

Max. dynamic capacity 540 rpm: 79 kW, 1400 Nm

Max. dynamic capacity 1000 rpm: 122 kW, 1165 Nm

Values at a deflection angle of 5° and a service life of 1000 hours

LZ = length after insertion in mm, from cross to cross< p>

Consisting of:

Drive shaft with cover

Declaration of Conformity

Operating manual

Shaft size: W2600

Length: 860mm

Diameter of the cross bush on the tractor side: 42mm

Length of the cross on the tractor side: 104mm

Diameter of the cross bush on the tractor side machine side: 42mm

Cross length on the machine side: 104mm

Outer pipe profile type: S6

Inner pipe profile type: S5H

Max. static torque: 7800N m

Cover type: SD35

OE reference number: 1113133
