PTO shaft 700nm 810 1320 one-way clutch

The subject of the offer is:

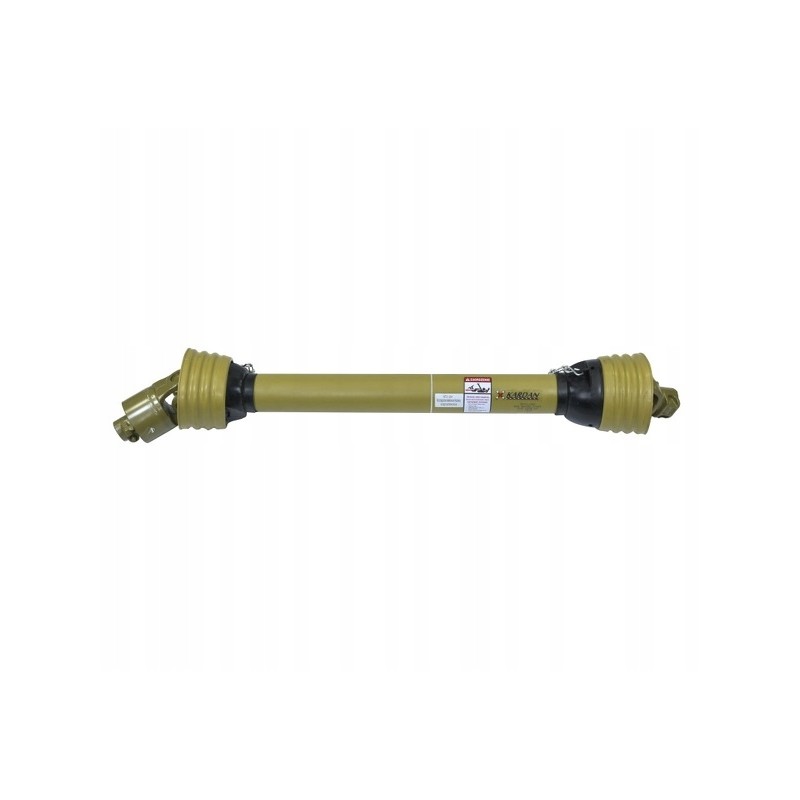

*Milled PTO shaft 700Nm, 810-1320mm, cross 32x76, one-way clutch * X Cardan

Characteristics:

Continuous working torque: 700 Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 32x76mm< p>

Tube profile: milling

Inner milled shaft: 40mm

Outer tube dimensions: 58x3mm

Tractor protection: Side latch

Machine security: Side latch

Operating angle: max. 25° (temporary max. 45°)

Torque at 540 rpm: 700Nm

Clutch type: one-way clutch

Shaft length (from the axis of the crosshead to the axis of the crosshead):

minimum: 810mm

maximum: 1320mm

*The so-called one-way clutch the free wheel is used to transfer the rotational torque (drive) in one direction and transmits the drive in the other direction. This is important when the tractor drives active machines with a working unit with high inertia, because the machine then drives the tractor's PTO shaft, which may cause damage to gearboxes or problems with stopping the tractor. The use of a one-way clutch solves this problem.
