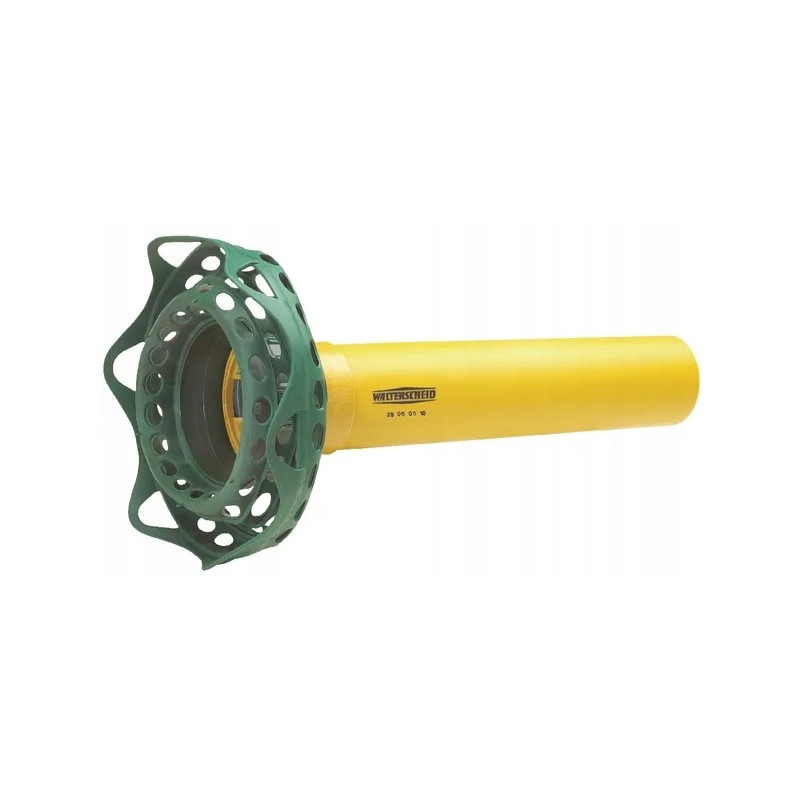

PTO shaft cover, half outside, standard SD25 1 84 90

PTO shaft cover, outer half, standard SD25/1 84/90-80, L=1500 mm Walterscheid

Part number: K. SD2511500AWWZFLEX

EAN: 8432970141001

Unit: Art

Application: Walterscheid wide-angle drive shafts series 80° from 2005

Properties:

Meets the requirements of ISO 5674 and EU directives

Meets the requirements of the EN12965 safety standard

Type: Outer half - Standard

Length: 1500mm

Consists of:

Half protective tube type SD with Flexo element

1 slip ring (for profile pipe)

Wide-angle funnel-shaped sleeve, wide-angle slip rings, chains and screws must be ordered separately

Shaft size:

W2480

W2580

Inner diameter. pipes: 80mm

Pipe outer diameter:

84mm

90mm

Series: SD25/1

Reference number OE: 1116592

Type: external
