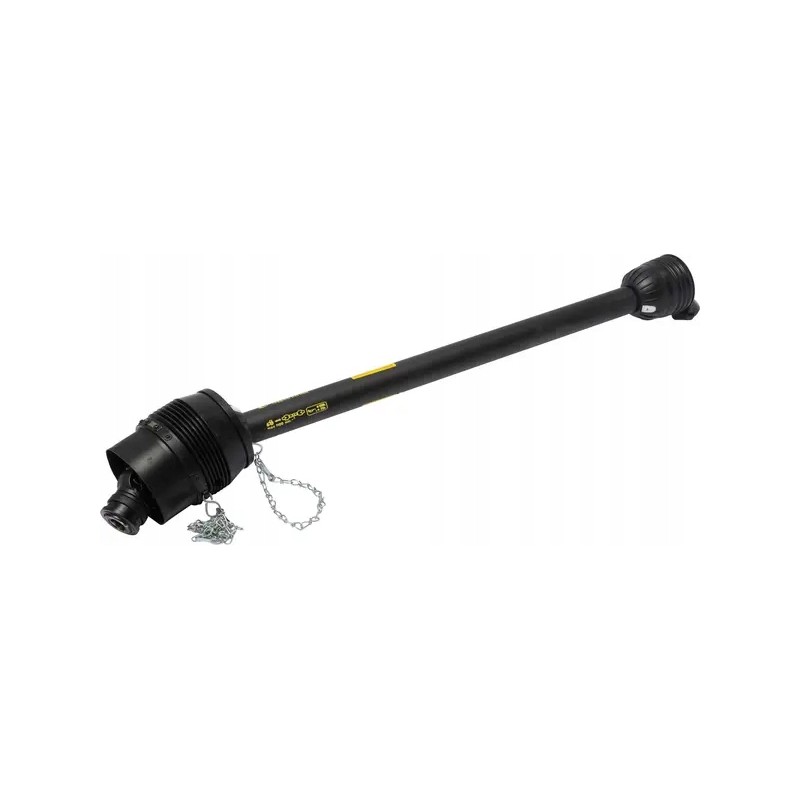

Wide angle joint shaft t cvj 20 l 860 mm width

Wide-angle joint shaft T CvJ 20 L = 860 mm, Comer quick-connect fork

Part number: K. TCVJ200860ENC02C12

EAN:

Unit: Piece

Application:

Slurry tank

Field sprayer

Trailed haymaking machine

Features:

Tractor side 1-3/8' (6) slider

Machine side 1-3/8' (6) sliding pin

Grease interval: 8 hours

CE marking is present

Technical information:

Maximum deflection angle for long-term use: 25o

The deflection angle can only be 80o for a short time

Observe Comer operating instructions

Max. dynamic power 540 rpm: 15 kW, 270 Nm

Max. dynamic power 1000 rpm: 23 kW, 220 Nm

Values at a deflection angle of 5° and a service life of 1000 hours

Outer diameter of the connection on the tractor side: 1-3/8 inch

Number of connection keys on the tractor side: 6

Type of connection on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Machine side connection OD: 1-3/8 inch

Number of machine side connection keys: 6

Machine side connection type: Flanged gate valve

Machine side accessories: Quick-connect fork

Shaft size: T CvJ 20

Length: 860mm

Power at 540 rpm: 15kW

Power at 1000 rpm: 23kW

Diameter of the cross bush on the tractor side - longer part: 23.8mm

Diameter of the cross bush on the tractor side: 23.8mm

Length of the cross on the tractor side - longer part: 82.1mm

Length of the cross on the tractor side: 74.1mm

Diameter of the cross bush on the machine side: 23.8mm

Length of the cross on the machine side: 61.3mm

Wall thickness of the outer tube: 2.9mm

Larger external diameter of the outer tube: 36mm

Wall thickness of the inner pipe: 4.3mm

Larger external diameter of the inner pipe: 29.6mm

Pipe profile shape: Triangular

Dynamic torque max.: 450N m

Reference number OE: 78210860EN00202104
