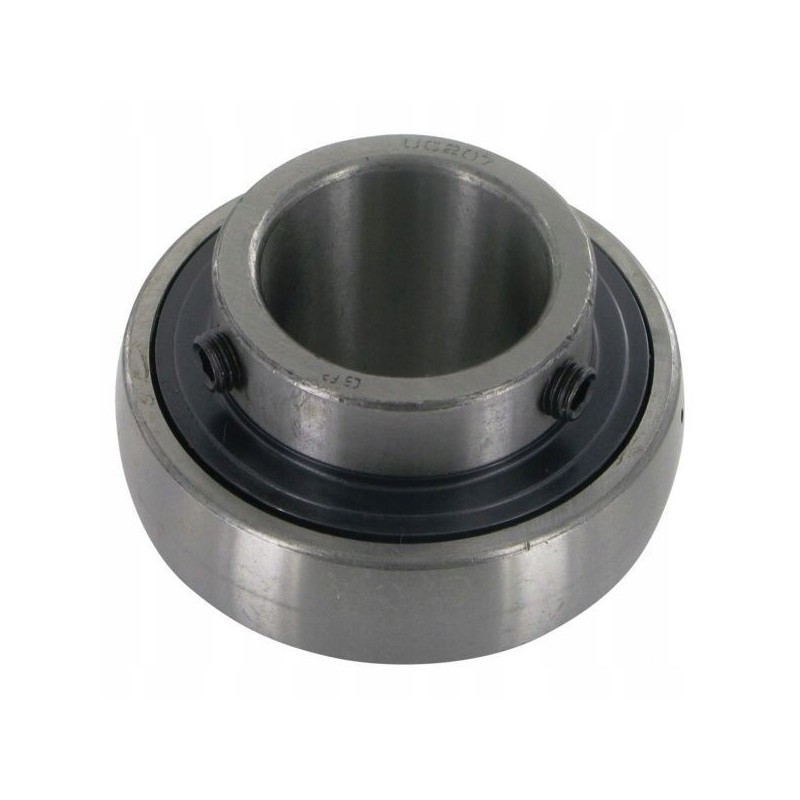

Uc207gp bearing insert

Bearing insert INDEX: UC207GP

Features: - Double-sided extended inner ring with 2 pressure screws - Convex outer ring with lubrication holes - Double-sided sealed

Inner diameter: 35 mm

Application: - Construction of mobile machines - Stationary machine construction

Outer diameter: 72 mm

Width of the outer part: 20 mm

Width internal part: 42.9mm

Dimension from the axis of the balls to the end of the mounting sleeve: 17.5 mm

Distance from the axis of the mounting screw to the edge: 6.5 mm

Dimension from the axis of the balls to the end of the internal part: 25.4 mm
