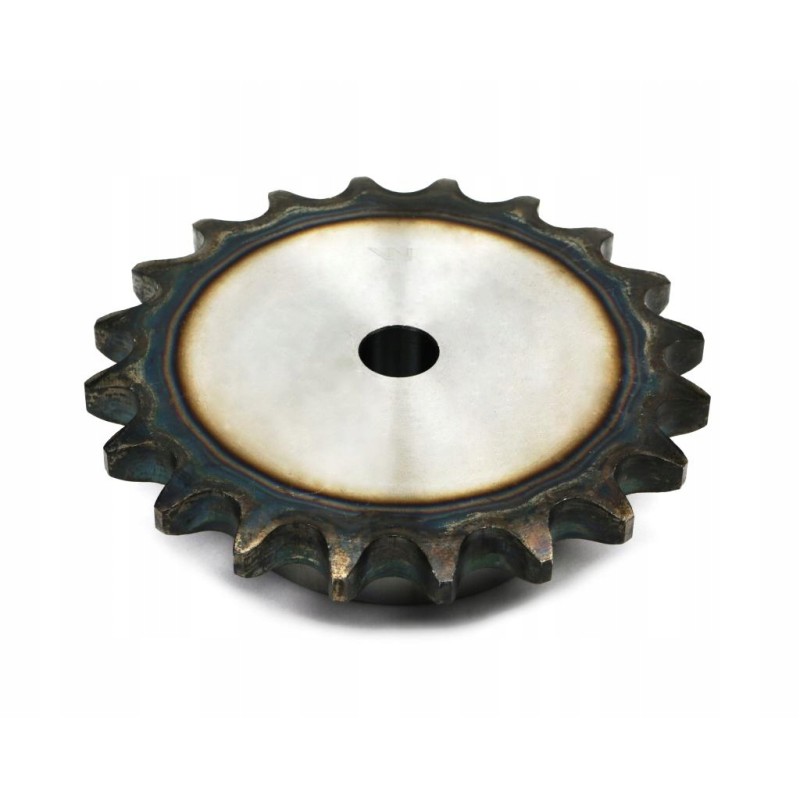

Gear wheel with flange 16b 1 r1 1 of 13 warynski

Hardened sprocket with collar 16B-1 (R1 1) Z-13 Waryński Type: Single

Chain size: 16B-1 (R1 1)

Number of teeth: 13

A Tooth tip diameter: 117.0 mm

B Pitch diameter: 106 .12 mm

C Total width: 40 mm

D Hole diameter: 16 mm

E Hub diameter: 78 mm

Tooth width: 16.2 mm

Material: C45

Hardened gear with flange 16B-1 (R1 1) Z -13 Waryński Universal chain wheel with a hub with a hole for turning. Suitable for chains of the PN77/M-84168, DIN 8187, ISO 606 standards. Increased abrasion resistance. Induction hardening of teeth makes the wheels last longer and are more resistant to abrasion. This process takes place under special supervision, which ensures perfect parameters of the furnace and cooling liquid. Extended service life. This is due to the precision of the teeth, pitch and pitch diameter, thanks to which the chain cooperates with the wheel without unnecessary resistance. This prevents abrasion of the rollers and stretching and damage of the chains. Increased resistance to cracking. All wheels are made of high-carbon steel. Very good cooperation with Waryński chains. Accurate and repeatable distances between the teeth ensure that the chain fits perfectly on the wheel, thus not damaging the chain.
