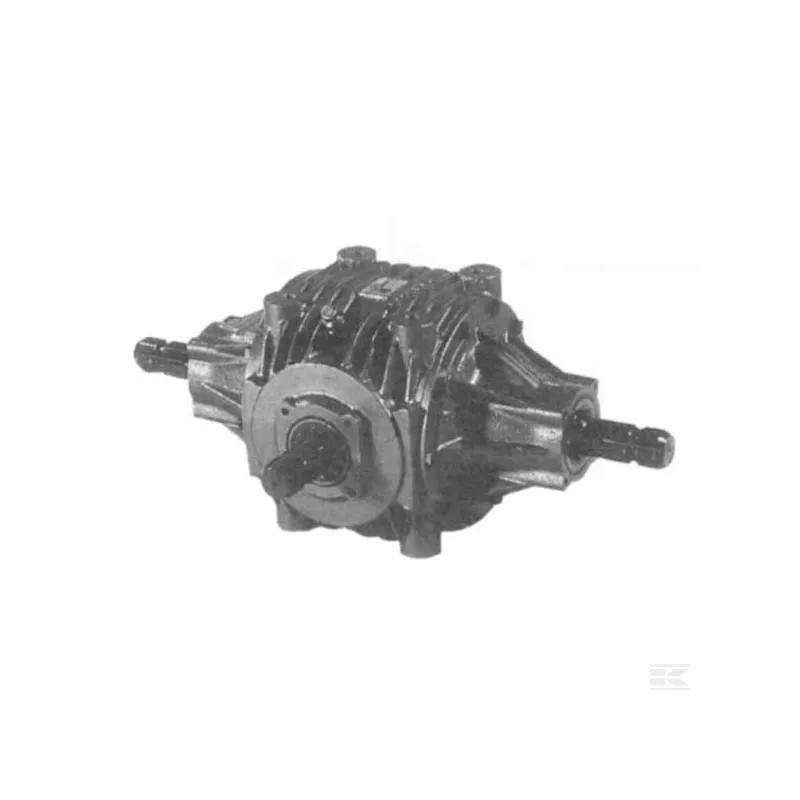

Gearbox t 301b 2 41 1

Gearbox T-301B 2.41:1 Application:

Part Number: 301207

Unit: Piece

Product Details:

Gearbox Supplied without oil, the oil must be refilled before the first start-up of the gearbox.

First oil change after 50-70 hours of operation, then after 500-700 hours of operation or at least once a year.

Application:

Various applications (in agriculture)

Lawn mowers

Root tiller

Max input speed: 540 rpm

Consists of:

Gear

Without oil

Max input power: 66 kW

Output torque max.: 2740 Nm

Output torque max.: 274 daNm

Contains oil: No

Amount of oil max.: 4, 4 l

Oil viscosity class SAE: 80W-90

Weight: 61.5 kg

Installation method, reduction: 5 - 6

Inlet shaft, reduction: Z

Note:

All gear units are delivered without oil filling.

First oil change after 50 operating hours.

Further oil changes after approx. 500-800 operating hours or once a year.

Radio ratio, increasing: 1: 2.41

Radio ratio, decreasing: 2.41: 1

X Shaft X: 1 3/4' (6) (A)

Y Shaft Y: 1 3/4' (6) (A)

Z Shaft Z: 1 3/4' (6) (B)
