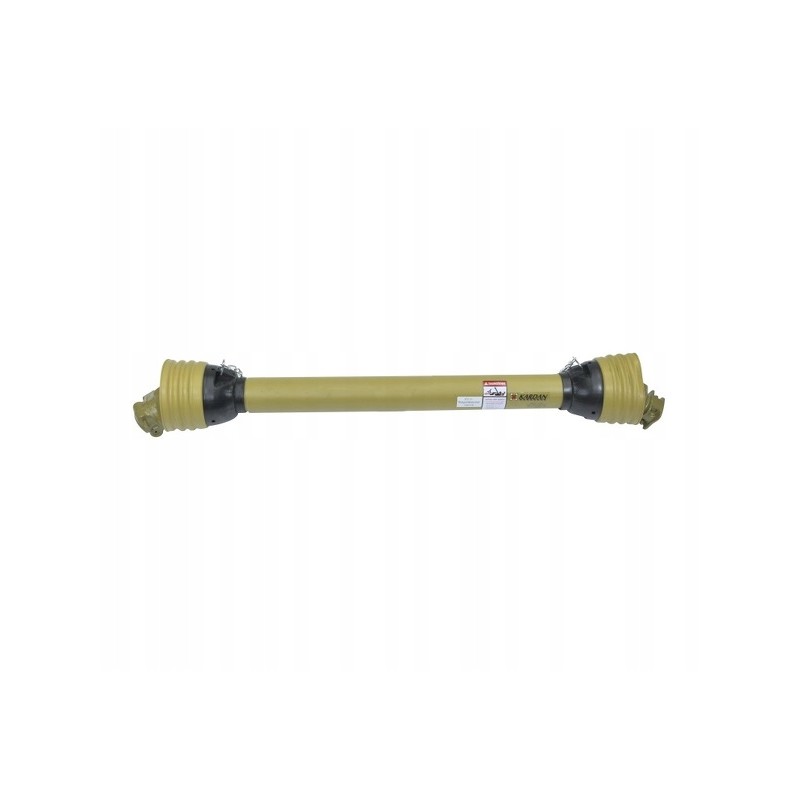

PTO shaft cutter 700nm 1210 1695mm pulley clutch

The subject of the offer is:

*Milled PTO shaft 700Nm, 1210-1695mm, cross 32x76, pin clutch * X Cardan

Characteristics:

Continuous operation torque : 700 Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 32x76mm

Tube profile: milling

Inner milled shaft: 40mm

Outer tube dimensions: 58x3mm

Tractor protection: Side latch

Machine security: Side latch

Operating angle: max. 25° (temporary max. 45°)

Torque at 540 rpm: 700Nm

Clutch type: pin clutch

Shaft length (from the axis of the cross to the axis of the cross):

minimum: 1210mm

maximum: 1695mm

*Principle of operation of the PTO clutch with a pin: the connecting screw shears under load, disconnecting the drive. After the clutch engages, the screw must be replaced with a new one and the clutch continues to function.
