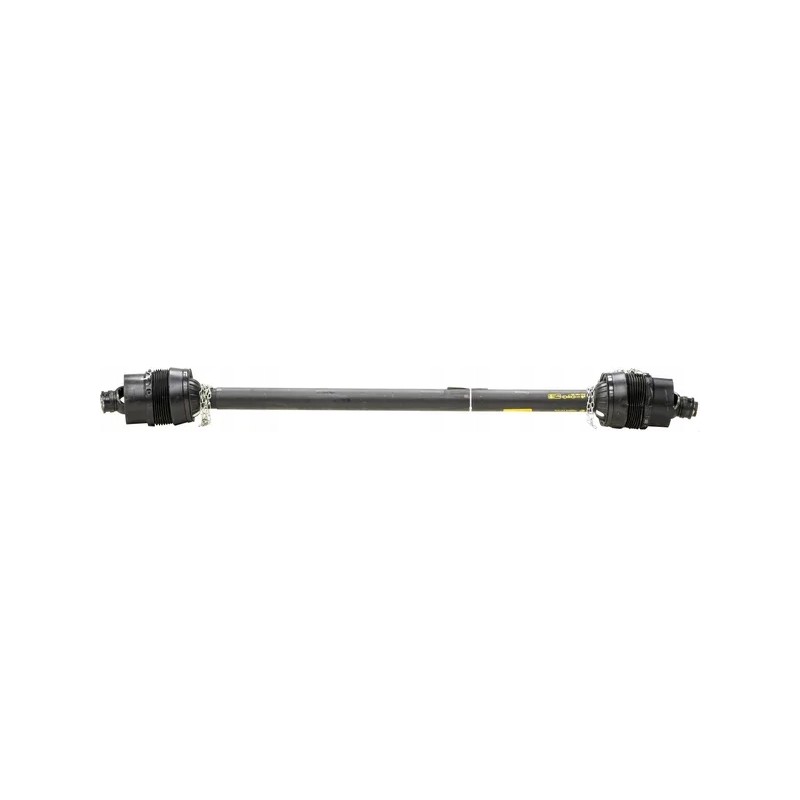

Wide angle joint shaft t cvj 40 l 1010 mm wi

Wide-angle joint shaft T CvJ 40 L=1010 mm, quick-connect fork Comer

Part number: K. TCVJ401010ENC02C02

EAN:

Unit: Piece

Application:

Field sprayers

Manure spreaders

Baler

Slurry tank

Features:

Tractor side 1-3/8' (6) slider

Machine side 1-3/8' (6) sliding pin

Lubrication frequency : 8 hours

CE marking is present

Technical information:

Maximum deflection angle for long-term use: 25°

The deflection angle may be only for a short time 80°

Observe Comer operating instructions

Max. dynamic power 540 rpm: 26 kW, 460 Nm

Max. dynamic power 1000 rpm: 40 kW, 380 Nm

Values at a deflection angle of 5° and a service life of 1000 hours

Outer diameter of the connection on the tractor side: 1-3/8 inch

Number of keys for connection on the tractor side: 6

Consisting of: Wide-angle drive shaft, on both sides, with a protective tube

Type of connection on the tractor side: Flange gate valve

Tractor-side accessories: Quick-connect fork

Outer diameter of the machine-side connection: 1-3/8 inch

Number of machine-side connection keys: 6< p>

Machine-side connection type: Flanged gate valve

Machine-side accessories: Quick-connect fork

Shaft size: T CvJ 40

Length: 1010mm

Power at 540 rpm: 26kW

Power at 1000 rpm: 40kW

Diameter of the cross sleeve on the tractor side - longer part: 27mm< p>

Diameter of the cross bush on the tractor side: 27mm

Length of the cross on the tractor side - longer part: 91.2mm

Length of the cross on the tractor side: 85.8mm< p>

Diameter of the cross-head sleeve on the machine side - longer part: 27mm

Diameter of the cross-head sleeve on the machine side: 27mm

Length of the cross-head on the machine side - longer part: 91, 2mm

Length of the cross on the machine side: 85.8mm

Wall thickness of the outer tube: 3.1mm

Larger external diameter of the outer tube: 43.5mm< p>

Wall thickness of the inner pipe: 4.8mm

Larger external diameter of the inner pipe: 36.6mm

Pipe profile shape: Triangular

Dynamic torque max.: 780N m

Reference number OE: 78421010EN00202604
