Pologniwo 5 8 x 3 8

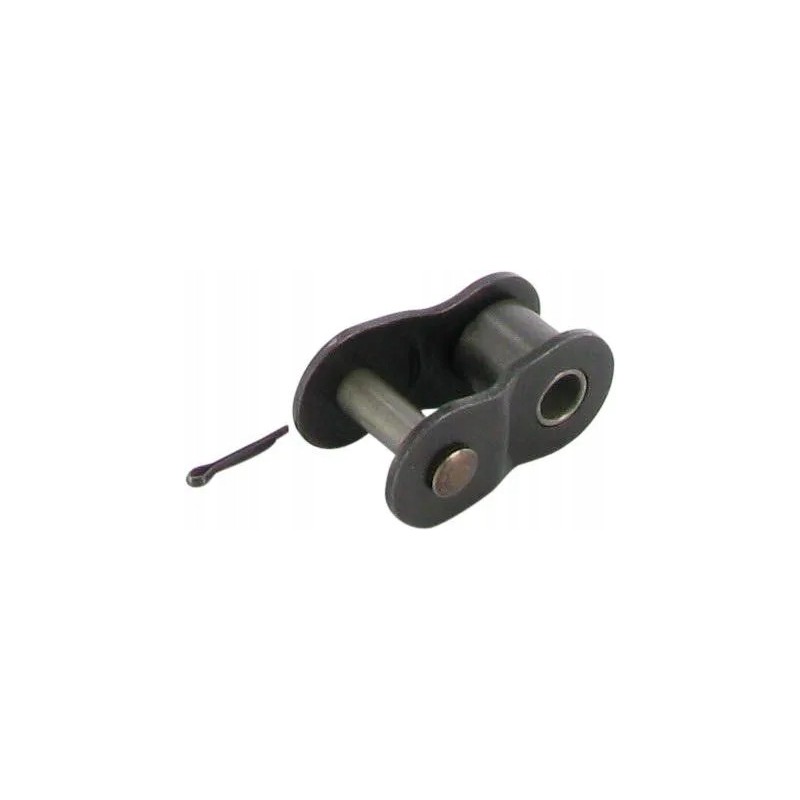

Half-link, 5/8 x 3/8

Part number: K.RS10B1V

EAN: 8718472230345

Unit: Art

Specifications: Connecting link with patented extruded ring design

Application: Tsubaki simplex roller chain Features:

Straight link (closing) for RS16 including spring clip

Bent link (running) with pin

Benefits: Offers up to 100% of the strength of the stock chain Link stroke: 15.875mm

Link pitch: 5/8 inch

Internal width: 9.65mm Internal Width: 3/8 inch

Internal link width: 13.28mm External width: 19.4mm Pin length: 20.8mm

Pin diameter: 5.08mm

Roll diameter: 10.16mm Height: 14.4mm

Size L1: 9.55mm

Size L2: 11.25mm

ISO size: 10 B-1

Internal cell wall thickness: 1.5mm Outer cell wall thickness: 1.5mm DIN standard: 8187

Type: Single

Product category: Half-cell
