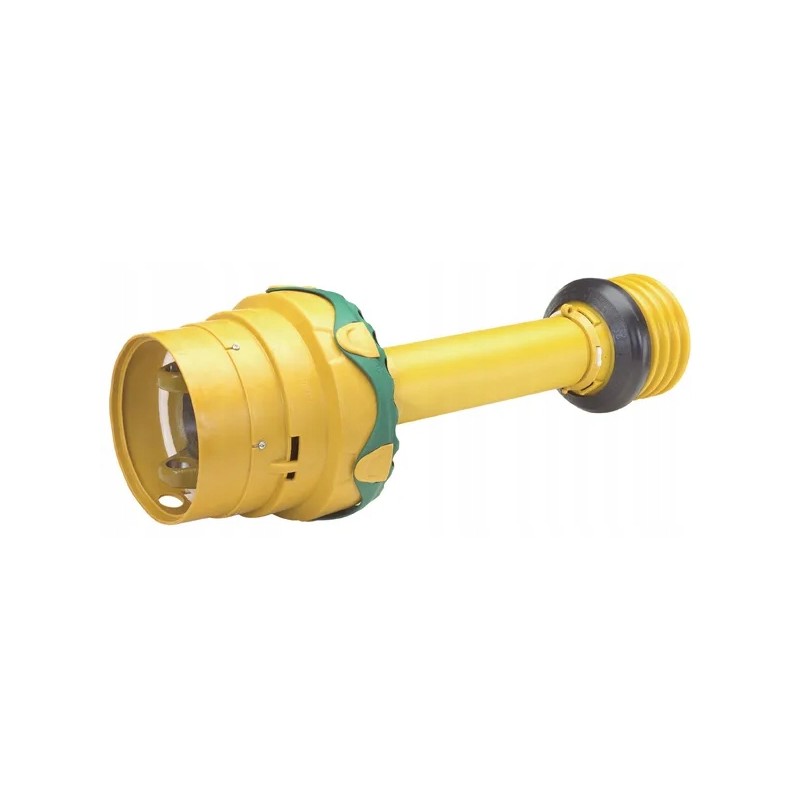

Wide-angle drive shaft without forks WWE 2480

Wide-angle drive shaft without forks WWE 2480 L=1210 mm Walterscheid

Part number: K. WWE24801210OG

EAN: 8432970202719

Unit: Piece

Application:

Feed wagon

Slurry barrel

Steer

Silage trailer

Properties:

Lubrication frequency: 8 hours

Meets the requirements of EC Directive 89/392 EEG

Meets the requirements of the EN12965 safety standard

CE marking is present

Technical information:

Maximum deflection angle for long-term use: 25o

The deflection angle may only be 80o for a short time

Max. dynamic power 540 rpm: 39 kW, 695 Nm

Max. dynamic power 1000 rpm: 61 kW, 580 Nm

Values at a deflection angle of 10° and a service life of 1000 hours

LZ = length after insertion in mm, from cross to cross< p>

Consisting of:

Wide-angle drive shaft, single-sided, with protective tube

Declaration of conformity

Operating manual

Delivery without connection fork

Delivery without cross kit on the wide angle side

Shaft size: WWE 2480

Length: 1210mm

Bushing diameter crossbar on the tractor side - longer part: 27mm

Diameter of the bushing of the crossbar on the tractor side: 32mm

Length of the crossbar on the tractor side - longer part: 94mm

Length of the crossbar on the tractor side: 76mm

Diameter of the cross sleeve on the machine side: 32mm

Length of the cross on the machine side: 76mm

External pipe profile type: 2aG

Inner tube profile type: 1bGA

Max. static torque: 3800N m

Cover type: SD25

OE reference number: 1800110
