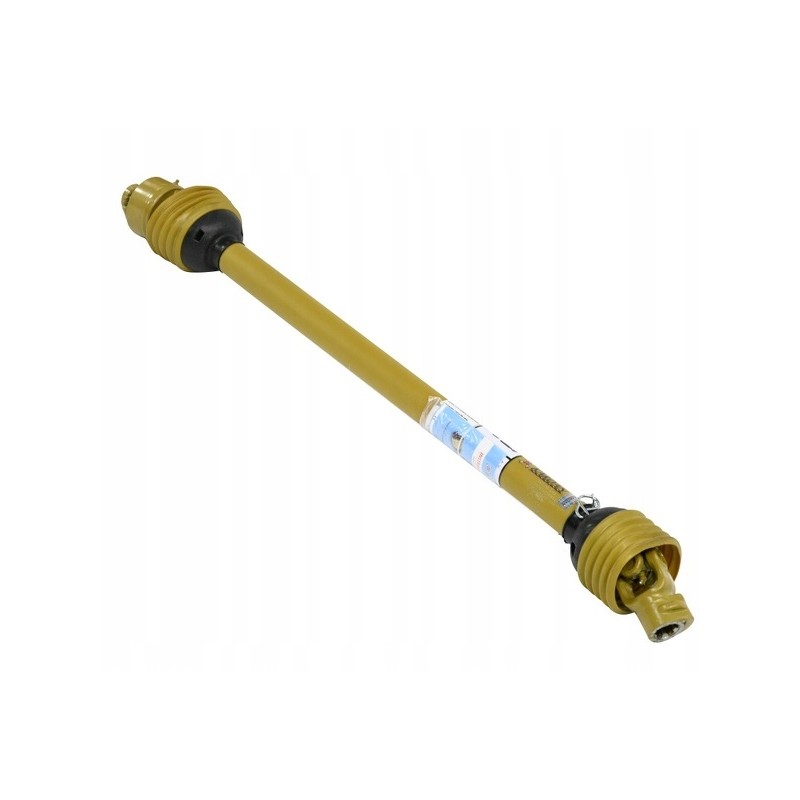

Power transmission shaft of PTO shafts 335nm 1010 1689mm

The subject of the offer is:

*Lemon PTO shaft 335Nm, 1010-1689mm, cross 24x61 with ratchet clutch X Cardan

Characteristics:

Continuous operation torque: 335Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles crosshead: 23.8x61, 2mm

Tube profile: lemon

Inner tube dimensions: 34.5/40/4mm

Outer tube dimensions: 41.3/48/3mm

Tractor protection: Side latch

Machine protection: Side latch

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 20kW

Torque at 540 rpm: 335Nm

Power at 1000 rpm: 31kW

Torque at 1000 rpm: 295Nm

Shaft length (from the axis of the cross to the axis of the cross):

minimum: 1010mm

maximum: 1689mm

*Overload clutch designed to protect machines against damage to active working units such as power harrows, tillers, flail mowers, spreaders, active weeders, shredders, etc.

*The clutch works on the principle of a ratchet mechanism held by springs. After reaching a torque of approximately 600Nm, the springs bend and the mechanism clicks, disconnecting the drive.

* When activated, a characteristic sound is heard.
