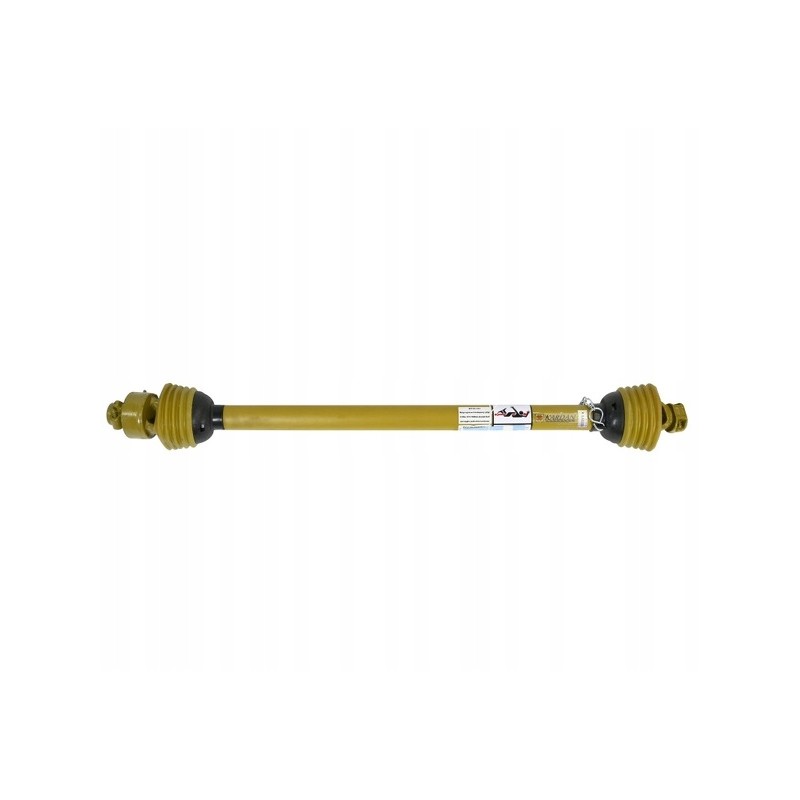

PTO shaft 1210 1989mm one-way clutch

The subject of the offer is:

*Lemon PTO shaft 335Nm, 1210-1989mm, cross 24x61 with X Cardan one-way clutch

Characteristics:

Continuous working torque: 335Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles crosshead: 23.8x61, 2mm

Tube profile: lemon

Inner tube dimensions: 34.5/40/4mm

Outer tube dimensions: 41.3/48/3mm

Tractor protection: Side latch

Machine protection: Side latch

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 20kW

Torque at 540 rpm: 335Nm

Power at 1000 rpm: 31kW

Torque at 1000 rpm: 295Nm

Shaft length (from the axis of the cross-head to the axis of the cross-head):

minimum: 1210mm

maximum: 1989mm

* One-way clutch, so-called the free wheel is used to transfer the rotational torque (drive) in one direction and transmits the drive in the other direction. This is important when the tractor drives active machines with a working unit with high inertia, because the machine then drives the tractor's PTO shaft, which may cause damage to gearboxes or problems with stopping the tractor. The use of a one-way clutch solves this problem.
