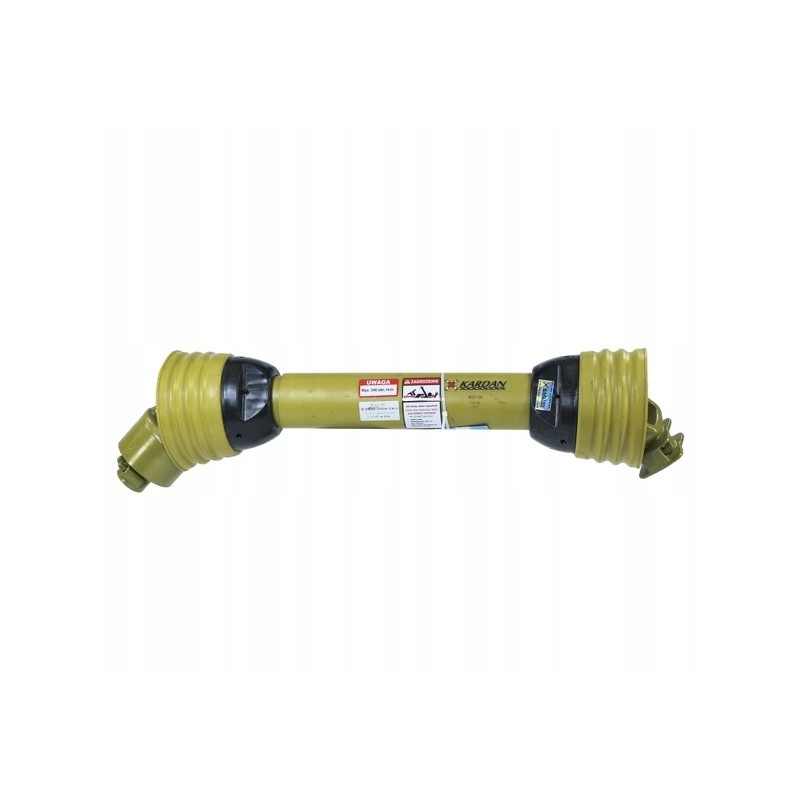

PTO shaft 610 890, one-way clutch 695nm

The subject of the offer is:

*Lemon PTO shaft 695Nm, 610-890mm, cross 32x76, X Cardan one-way clutch

Characteristics:

Continuous working torque: 695Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles crosshead: 32x76mm

Pipe profile: lemon

Inner pipe dimensions: 39.5/49/5mm

Outer pipe dimensions: 48/57.5/4mm

Tractor protection: side latch

Machine protection: side latch

Operating angle: max. 25° (temporary max. 45°)

Power at 540 rpm /min: 39kW

Torque at 540 rpm: 695Nm

Power at 1000 rpm: 61kW

Torque at 1000 rpm: 580Nm

Shaft length (from the axis of the cross to the axis of the cross):

minimum: 610mm

maximum: 890mm

*So-called one-way clutch . the free wheel is used to transfer the rotational torque (drive) in one direction and transmits the drive in the other direction. This is important when the tractor drives active machines with a working unit with high inertia, because the machine then drives the tractor's PTO shaft, which may cause damage to gearboxes or problems with stopping the tractor. The use of a one-way clutch solves this problem.
