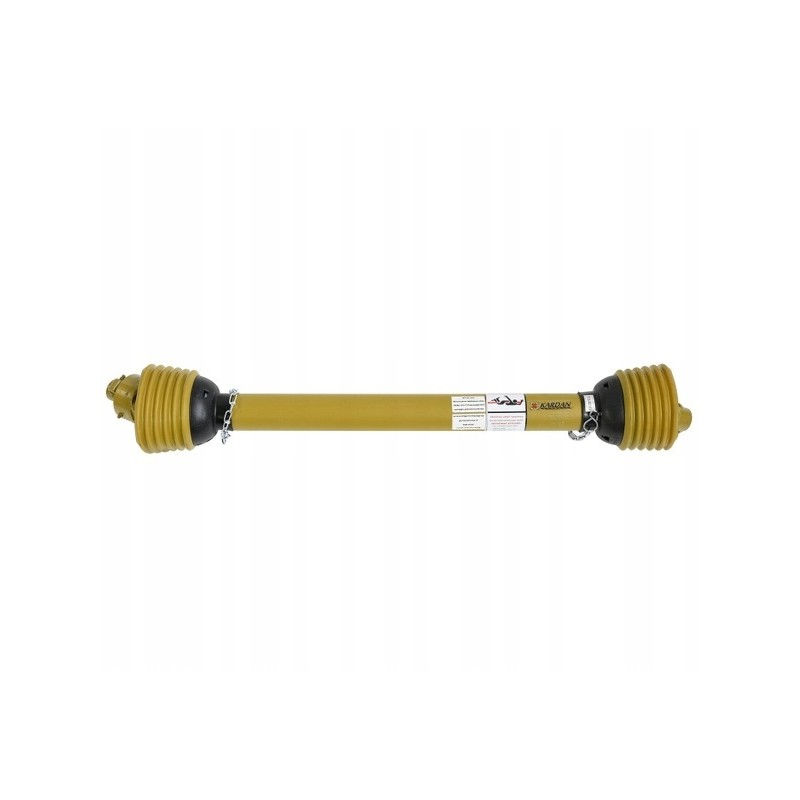

PTO shaft 695nm 810 1407 one-way clutch

The subject of the offer is:

*Lemon PTO shaft 695Nm, 810-1407mm, cross 32x76, one-way clutch X Cardan

Characteristics:

Continuous working torque: 695Nm< p>

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles crosshead: 32x76mm

Tube profile: lemon

Inner tube dimensions: 39.5/49/5mm

Outer tube dimensions: 48/57.5/4mm

Tractor protection: side latch

Machine protection: side latch

Working angle: max. 25° (temporary max. 45°)

Power at 540 rpm/ min: 39kW

Torque at 540 rpm: 695Nm

Power at 1000 rpm: 61kW

Torque at 1000 rpm: 580Nm

Shaft length (from the axis of the cross-head to the axis of the cross-head):

minimum: 810mm

maximum: 1407mm

*One-way clutch, so-called the free wheel is used to transfer the rotational torque (drive) in one direction and transmits the drive in the other direction. This is important when the tractor drives active machines with a working unit with high inertia, because the machine then drives the tractor's PTO shaft, which may cause damage to gearboxes or problems with stopping the tractor. The use of a one-way clutch solves this problem.
