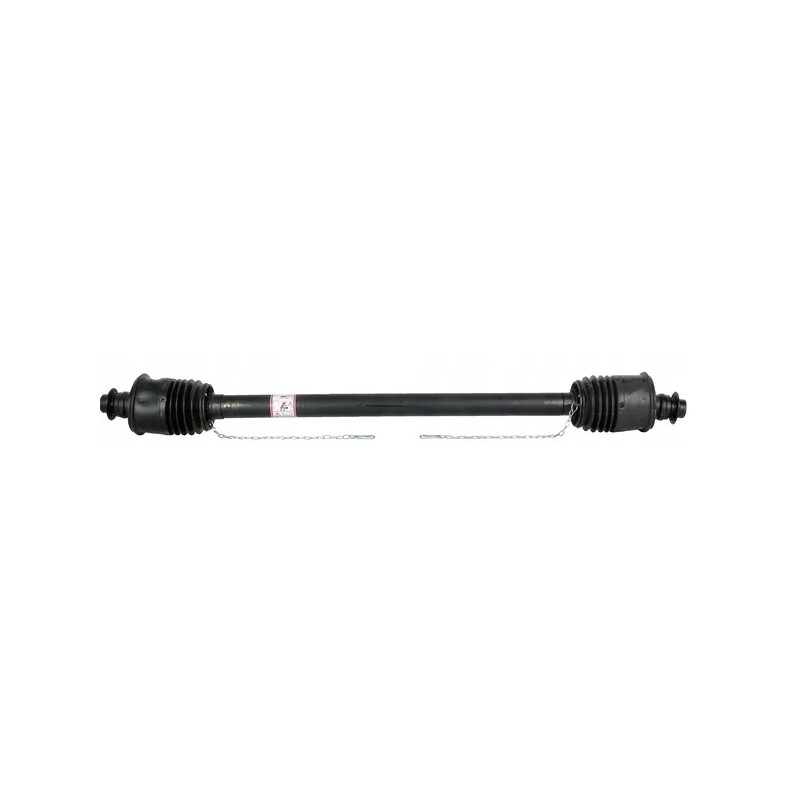

Wide angle joint shaft g7 l 1210 mm bondioli

PTO shaft, wide angle G7 L=1210 mm Bondioli&Pavesi

Part number: K. 7G7R121CEWR7WR7

EAN:

Unit: Piece

Application :

Manure spreader

Feeder wagon

Steer

Forage wagon

Round balers

Properties:

Improved protection concept

Optimized cross elements with needle bearings, equipped with double-edge sealing rings

Good accessibility to all grease nipples

(all grease nipples are placed on one line)

Technical information: CE Mark

Benefits:

Lubrication intervals extended to 50 hours

Easy maintenance

High reliability and low specific power load

Outer diameter of the connection from the tractor side: 1-3/8 inch

Number of keys in the connection from the tractor side : 6

Outside diameter of the machine side connection: 1-3/8 inch

Number of keys of the machine side connection: 6

Shaft size: G7

Length: 1210mm

Power at 540 rpm: 47kW

Power at 1000 rpm: 74kW

Diameter of the cross sleeve on the side tractor: 27mm

Length of the cross on the tractor side: 100mm

Diameter of the cross bush on the machine side: 30.2mm

Length of the cross on the machine side: 91.4mm
