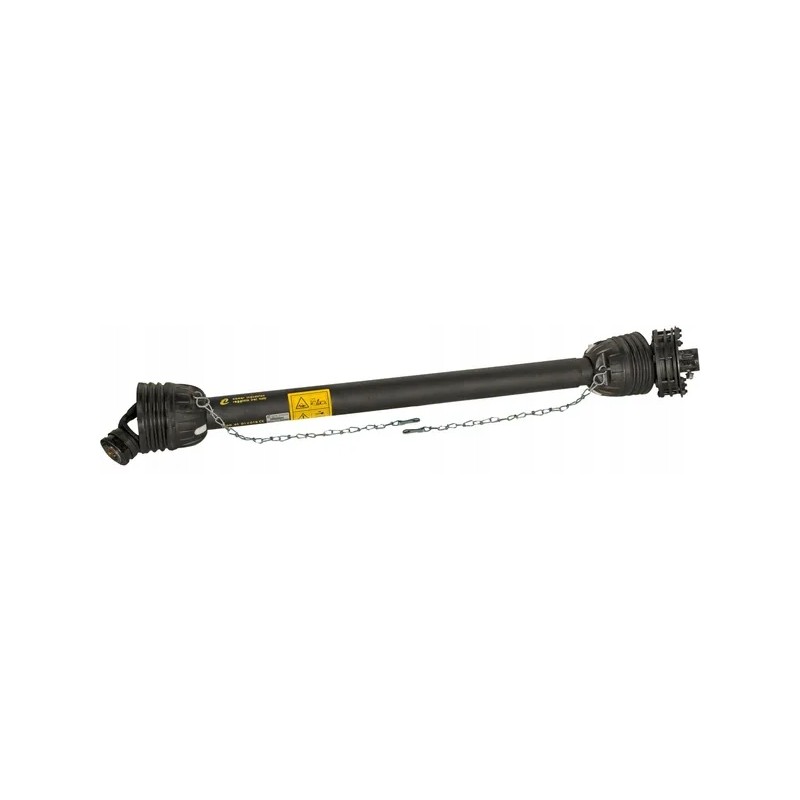

Cardan shaft t80 l 1210 mm friction clutch come

T80 joint shaft L=1210 mm, Comer friction clutch

Part number: K. T801210ENC12T48

EAN:

Unit: Piece

Tractor side connection OD: 1-3/8 inch

Number of tractor side connection keys: 6

Tractor side connection type: Flange gate valve

Tractor-side accessories: Quick-connect fork

Outer diameter of the machine-side connection: 1-3/4 inch

Number of machine-side connection keys: 6

Type machine side connections: Clamping cone

Machine side accessories: Friction clutch

Shaft size: T80

LDength: 1210mm

Power at 540 rpm: 70kW

Power at 1000 rpm: 110kW

Diameter of the cross sleeve on the tractor side: 35mm

Length of the cross on the tractor side: 106.5mm

Diameter of the cross sleeve on the machine side: 35mm

Length of the cross on the machine side: 106.5mm

Clutch type: T46

Maximum clutch torque: 2000N m

Outer tube wall thickness: 4mm

Larger outer diameter of the outer tube: 63mm

Inner tube wall thickness : 5mm

Larger outer diameter of the inner pipe: 54mm

Pipe profile shape: Triangular

Maximum dynamic torque: 2250N m

OE reference number: 0789509511
