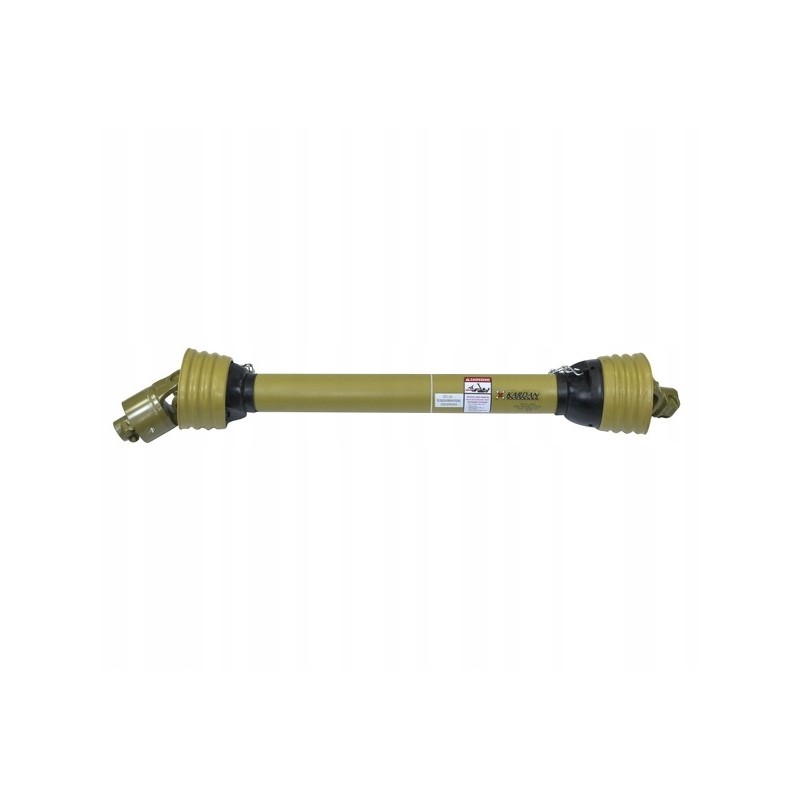

PTO shaft 620nm 910 1420 one-way clutch

The subject of the offer is:

*Milled PTO shaft 620Nm, 910-1420mm, cross 30x80, one-way clutch * X Cardan

Characteristics:

Continuous operation torque: 620Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles cross: 30.2x80mm

Tube profile: z-12

Inner tube dimensions: 40mm

Outer tube dimensions: 58x3mm

Tractor security: side latch< p>

Machine security: side latch

Clutch type: one-way

Operating angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 35kW

Torque at 540 rpm: 620Nm

Power at 1000 rpm: 54kW

Torque at 1000 rpm: 520Nm

Shaft length (from the axis of the cross-head to the axis of the cross-head):

minimum: 910mm

maximum: 1420mm

*One-way clutch, so-called the free wheel is used to transfer the rotational torque (drive) in one direction and transmits the drive in the other direction. This is important when the tractor drives active machines with a working unit with high inertia, because the machine then drives the tractor's PTO shaft, which may cause damage to gearboxes or problems with stopping the tractor. The use of a one-way clutch solves this problem.
