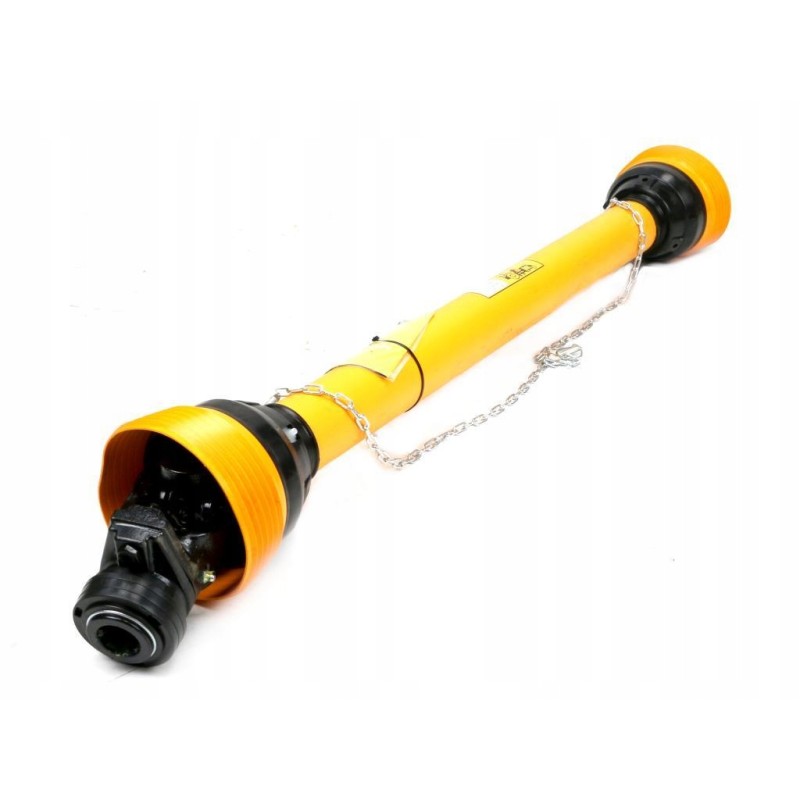

Articulated and telescopic shaft 1210 1880mm 830nm 6r

PTO shaft 1210-1880mm 830Nm clutch with pin 2500Nm CE 2020 series 6R Waryński EAN: 5902287204827

SKU: W6B1711210

All products on our auctions are new and from proven manufacturers

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Coupling: None Pipe thickness internal:45mm Outer tube thickness:54mm Nominal power:47 ( 64 )KW (HP) Mounting to the machine:1 3/8' Z6' inch Mounting to the tractor:1 3/8' Z6' inch Torque:830Nm Working angle: Max. 17° Bearing diameter: 30.2 mm Cross height: 91.6 mm Telescopic connector type: Triangular pipe Minimum length: 1210 mm Maximum length: 1880 mm Works with: External fork - WR227601, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363735, WR2140600 Outer pipe - WR2362785, WR2141600, Housing - WR22961129, Clutch breaking power:NoneNm Inner pipe wall thickness:5.5mm Pipe wall thickness outer y:4mm Packing by:: 1

Tractor attachment: 1 3/8' Z6 'inch

Machine attachment: 1 3/8' Z6 'inch

Telescopic link type: Triangular pipe

Minimum length: 1210mm

Maximum length: 1880mm

Nominal power: 47 ( 64 )KW (HP)

Clutch : None

Inner tube thickness: 45mm

Outer tube thickness: 54mm

Bearing diameter: 30.2mm

Cross height: 91 .6mm

Works with: External fork - WR227601, Cross fork - WR219601, Internal pipe fork. - WR219607, Outer pipe fork - WR219606, Inner pipe - WR2363735, WR2140600 Outer pipe - WR2362785, WR2141600, Housing - WR22961129,

Clutch disengaging power: NoneNm

Torque: 830Nm

Working angle: Max 17°

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness: 4mm

Packing after :: 1

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. If you receive goods that do not match the description, please inform us immediately in a message via Allegro.
