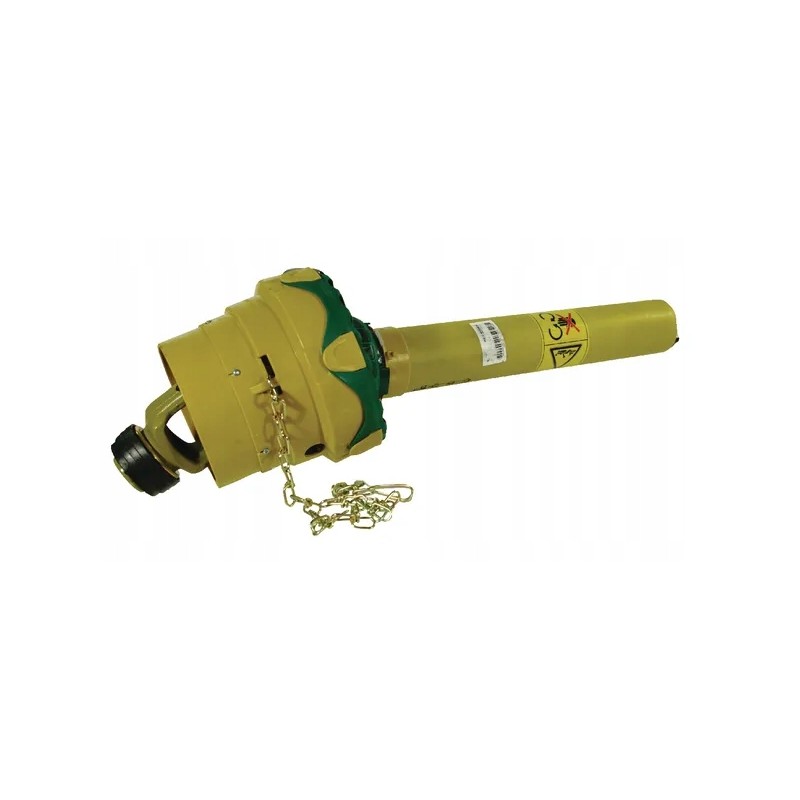

Half of the wide-angle drive shaft internal internal 2

Half of wide-angle drive shaft, internal WW 2480 L=1210 mm Walterscheid

Part number: K. WWZ24801210I

EAN:

Unit: Art

Application:

Feed wagon

Slurry barrel

Digger

Silage trailer

Properties:

Tractor side 1-3/8' (6) gate valve

Lubrication interval: 8 hours

Meet the requirements of the EC directive 89/392 EEG

Meet the requirements of the EN12965 safety standard< p>

CE marking is present

Technical information:

Maximum deflection angle for long-term use: 25o

The deflection angle can only be 80o for a short time

Max. dynamic power 540 rpm: 39 kW, 695 Nm

Max. dynamic power 1000 rpm: 61 kW, 580 Nm

Values at a deflection angle of 10° and a service life of 1000 hours

Outer diameter of the connection on the tractor side: 1-3/8 inch

Number of connection keys on the tractor side: 6

Consisting of:

Articulated shaft with protective tube

Declaration of conformity

Operating manual

Type of connection on the tractor side: Automatic flange gate valve

Accessories on the tractor side: Quick-connect fork

Type of connection on the machine side: n /a

Machine side accessories: n/a

Shaft size: WWH 2480

Length: 1134mm

Power at 540 rpm /min: 39kW

Power at 1000 rpm: 61kW

Diameter of the cross bush on the tractor side - longer part: 27mm

Diameter of the cross bush on the tractor side : 32mm

Length of the cross on the tractor side - longer part: 94mm

Length of the cross on the tractor side: 76mm

Diameter of the cross bush on the machine side: 32mm

Length of the cross on the machine side - longer part: 94mm

Length of the cross on the machine side: 76mm

Clutch type: n/a

Type inner pipe profile: 1bGA

Inner pipe wall thickness: 4.5mm

Larger outer diameter of the inner pipe: 49mm

Pipe profile shape: Lemon

Max static torque: 4000N m

Cover type: SD25

OE reference number: 1113193
