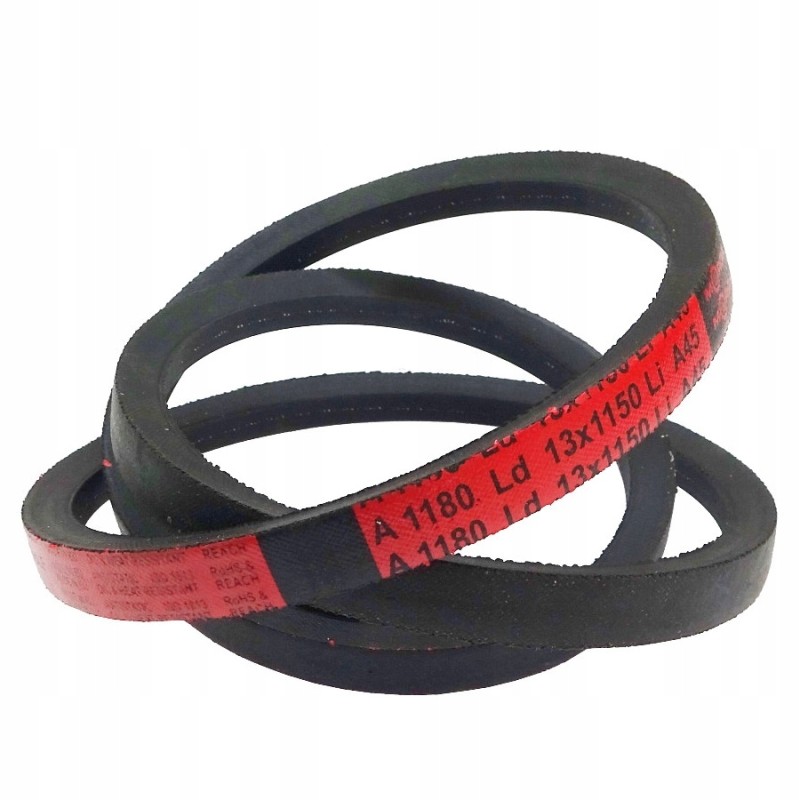

A strip of 1,180 morga, super reinforced

HA-1180 MORGA belt, super reinforced MORGA

HA-1180 V-belt Normal-profile V-belts are used in V-belt transmission.

In cross-section, they have the shape of an isosceles trapezoid,

which ensures a high value of friction force with low belt pretension

and very good cooperation between the belt and the pulleys.

Dimensions * width: 13 mm

*height: 8 mm

*length: 1180 mm

Properties Morga V-belts with "A" profile are made of rubber based on caoutchoucs with good compression resistance and high flexibility. The belt core is made of rubber mixtures with textile filling providing additional deformation strength and compression resistance. Additional wraps with cotton-polyester fabric with high elasticity and low abrasion increase the life of the belts.

*Permissible peripheral speed 30 m/s

* Resistance to temperatures ranging from -35°C to +100°C

*Oil resistance

*Antielectrostaticity

*Weight: ~ 0.13 kg/m

*Recommended minimum pulley diameter dp: 71mm

Application: Heavy-duty gears operating under frequent overloads, e.g. single- and double-cylinder piston pumps and compressors, jacks, lifts, etc. Wherever a strong and durable V-belt is needed. Transmission and power transmission / V-belts / Belts normal profile / HA belts - 13
