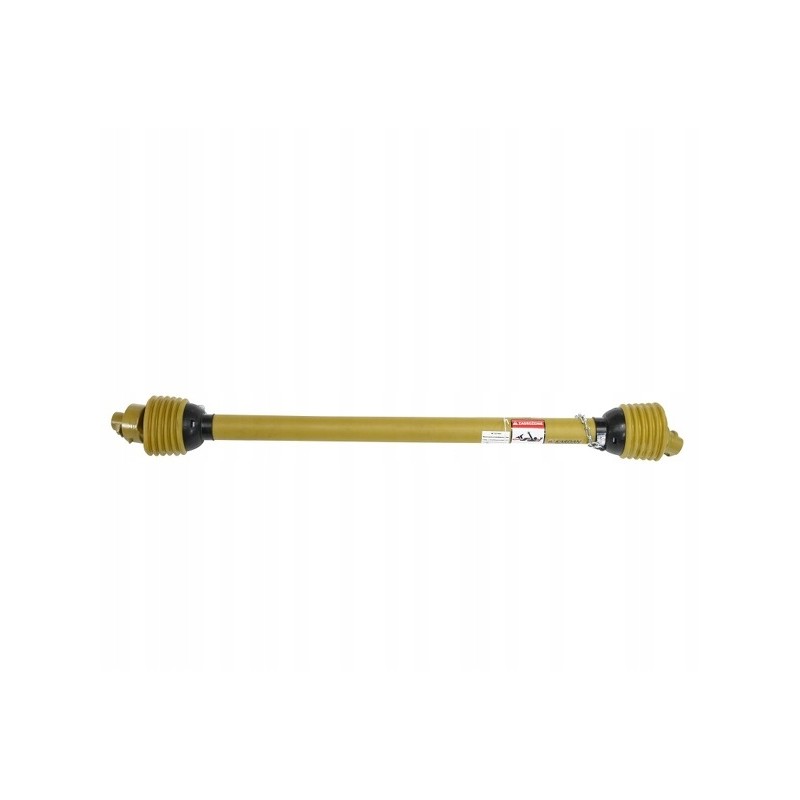

PTO shaft 1210 2003mm, one-way clutch

The subject of the offer is:

*Lemon PTO shaft 575Nm, 1210-2003mm, cross 27x75, one-way clutch X Cardan

Characteristics:

Continuous operation torque: 575Nm< p>

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles crosshead: 27x74.6mm

Tube profile: lemon

Inner tube dimensions: 39.5/49/5mm

Outer tube dimensions: 48/57.5/4mm

Tractor protection: side latch

Machine protection: side latch

Clutch type: one-way

Operating angle: max. 25° (temporary max. 45° )

Power at 540 rpm: 32kW

Torque at 540 rpm: 575Nm

Power at 1000 rpm: 52kW

Torque at 1000 rpm: 450Nm

Shaft length (from the axis of the crosshead to the axis of the crosshead):

minimum: 1210mm

maximum: 2003mm

*The so-called one-way clutch the free wheel is used to transfer the rotational torque (drive) in one direction and transmits the drive in the other direction. This is important when the tractor drives active machines with a working unit with high inertia, because the machine then drives the tractor's PTO shaft, which may cause damage to gearboxes or problems with stopping the tractor. The use of a one-way clutch solves this problem.
