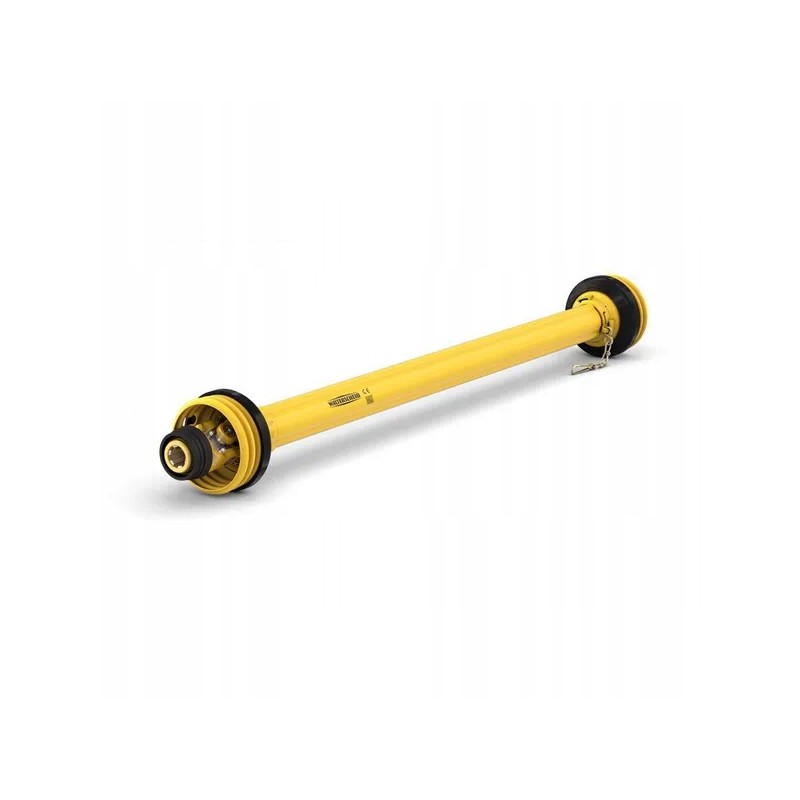

Cardan shaft w2300 l 1010 mm walterscheid

PTO shaft W2300 L=1010 mm Walterscheid

Part number: K. W23001010

EAN: 8435194029711

Unit: Piece

Application:

Mowers

Steer

Seeders

Features:

Thrust side, extendable slide 1-3/8 ' (6)

Machine side, 1-3/8 sliding pin 89/392 EEG

Meets the requirements of the safety standard EN12965

CE marking is present

Technical information:

Follow the Walterscheid operating instructions

Max. dynamic capacity 540 rpm: 28 kW, 500 Nm

Max. dynamic capacity 1000 rpm: 44 kW, 415 Nm

Values at a deflection angle of 5° and a service life of 1000 hours

LZ = length after insertion in mm, from cross to cross< p>

Outer diameter of the connection from the tractor side: 1-3/8 inch

Number of keys in the connection from the tractor side: 6

Consisting of:

PTO shaft with cover

Declaration of conformity

Operating manual

Connection type on the tractor side: Flange gate valve

Accessories on the tractor side : Quick-connect fork

Outside diameter of the machine-side connection: 1-3/8 inch

Number of slots for the machine-side connection: 6

Machine-side connection type : Flanged gate valve

Machine side accessories: Quick-connect fork

Shaft size: W2300

Length: 1010mm

Power at 540 rpm/ min: 28kW

Power at 1000 rpm: 44kW

Diameter of the cross sleeve on the tractor side: 27mm

Length of the cross on the tractor side: 75mm

Diameter of the cross sleeve on the machine side: 27mm

Length of the cross on the machine side: 75mm

Coupling type: n/a

External pipe profile type .: 1

Outer pipe wall thickness: 3mm

Larger outer diameter of the outer pipe: 48mm

Internal pipe profile type: Ov

Wall thickness of the inner pipe: 4mm

Larger external diameter of the inner pipe: 40mm

Pipe profile shape: Lemon

Max. static torque: 2500N· m

Cover type: ST15

OE reference number: 1800050
