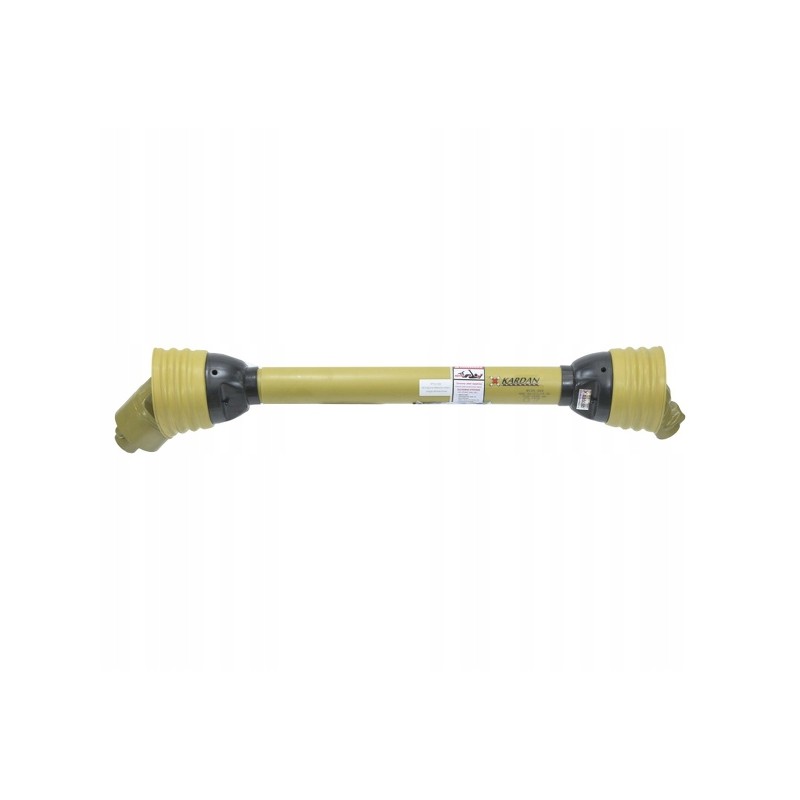

PTO shaft 460nm 810 1235 one-way clutch

The subject of the offer is:

*Triangular PTO shaft 460Nm, 810-1235mm, cross 27x75, X Cardan one-way clutch

Characteristics:

Continuous operation torque: 460Nm

Tractor fork: 1 3/8 inch - 6 cutters

Machine fork: 1 3/8 inch - 6 cutters

Isosceles crosshead: 27x75mm

Tube profile: triangle

Inner tube dimensions: 36x4.5mm

Outer tube dimensions: 43x3mm

Tractor protection: side latch

Machine protection: side latch

Clutch type: unidirectional

Operating angle: max. 25° (temporary max. 45°)

Power at 540 rpm: 26kW

Torque at 540 rpm: 460Nm

Power at 1000 rpm: 40kW

Torque at 1000 rpm : 380Nm

Shaft length (from the axis of the cross-head to the axis of the cross-head):

minimum: 810mm

maximum: 1235mm

*One-way clutch the so-called the free wheel is used to transfer the rotational torque (drive) in one direction and transmits the drive in the other direction. This is important when the tractor drives active machines with a working unit with high inertia, because the machine then drives the tractor's PTO shaft, which may cause damage to gearboxes or problems with stopping the tractor. The use of a one-way clutch solves this problem.
