Chain lock 3 4 x 7 16 double

Chain lock, 3/4 x 7/16 double

Part number: K.RS12B2S

EAN: 8718472230888

Unit: Art

Specifications: Connecting link with patented extruded ring design

Application: Tsubaki duplex roller chain Features:

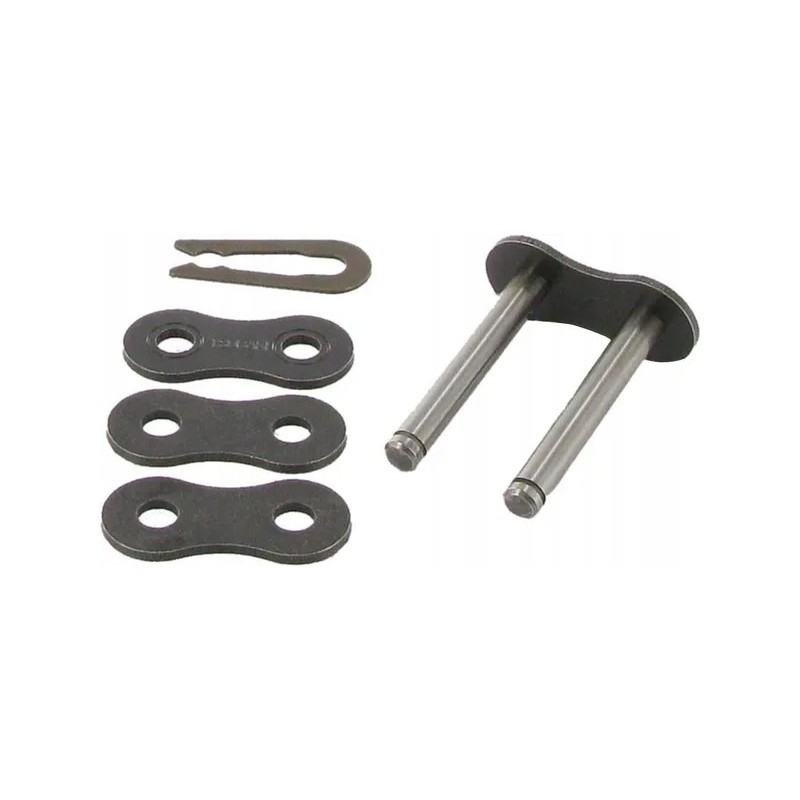

Straight link (closing) for RS16 including spring clip

Bent link (running) with pin

Benefits: Offers up to 100% of the strength of the stock chain Link pitch: 19.05mm

Link pitch: 3/4 inch

Internal width: 11.68mm Internal Width: 7/16 inch

Internal link width: 15.62mm External width: 42mm Pin length: 45.9mm

Pin diameter: 5.72mm Roll diameter: 12.07mm

Height: 16.4mm

Section spacing: 19.46mm

Size L1: 20.85mm

Size L2: 22.75mm

ISO size: 12 B-2

Internal cell wall thickness: 1.8mm Outer cell wall thickness: 1.8mm DIN standard: 8187

Type: Double

Product category: Chain lock
