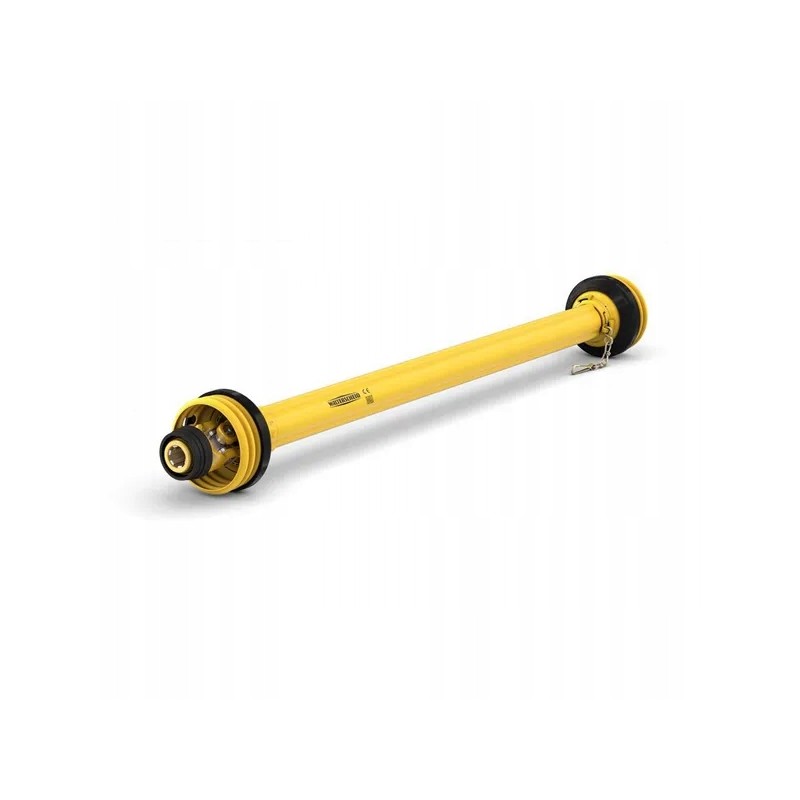

Cardan shaft w2600 l 860 mm walterscheid

PTO shaft W2600 L=860 mm Walterscheid

Part number: K. W2600860

EAN: 8435194030168

Unit: Piece

Application:

Heavy tillage machinery

Wood chippers

Stem grinder

Features:

Page of string , extendable slide 1-3/8' (6)

Machine side, Clamping cone 1-3/8' (6)

Lubrication frequency from 50 to 100 hours

Meets the requirements of the EC directive 89/392 EEG

Meets the requirements of the EN12965 safety standard

The CE mark is present

Technical information:

Follow the Walterscheid operating instructions

Max. dynamic capacity 540 rpm: 79 kW, 1400 Nm

Max. dynamic capacity 1000 rpm: 122 kW, 1165 Nm

Values at a deflection angle of 5° and a service life of 1000 hours

LZ = length after insertion in mm, from cross to cross< p>

Outer diameter of the connection from the tractor side: 1-3/8 inch

Number of keys in the connection from the tractor side: 6

Consisting of:

PTO shaft with cover

Declaration of conformity

Operating manual

Connection type on the tractor side: Automatic flange gate valve

Accessories on the side tractor: Quick-connect fork

Outer diameter of the connection on the machine side: 1-3/8 inch

Number of keys in the connection on the machine side: 6

Type of connection on the side machines: Clamping cone

Machine side accessories: Clamping yoke

Shaft size: W2600

Length: 860mm

Power at 540 rpm /min: 79kW

Power at 1000 rpm: 122kW

Diameter of the cross sleeve on the tractor side: 42mm

Length of the cross on the tractor side: 104mm

Diameter of the cross sleeve on the machine side: 42mm

Length of the cross on the machine side: 104mm

Coupling type: n/a

Pipe profile type outer tube: S6

Outer tube wall thickness: 5mm

Larger outer diameter of the outer tube: 71.5mm

Internal tube profile type: S5H

Wall thickness of the inner pipe: 4.5mm

Larger outer diameter of the inner pipe: 61mm

Pipe profile shape: Star

Static torque max.: 7800N m

Cover type: SD35

OE reference number: 1800072
