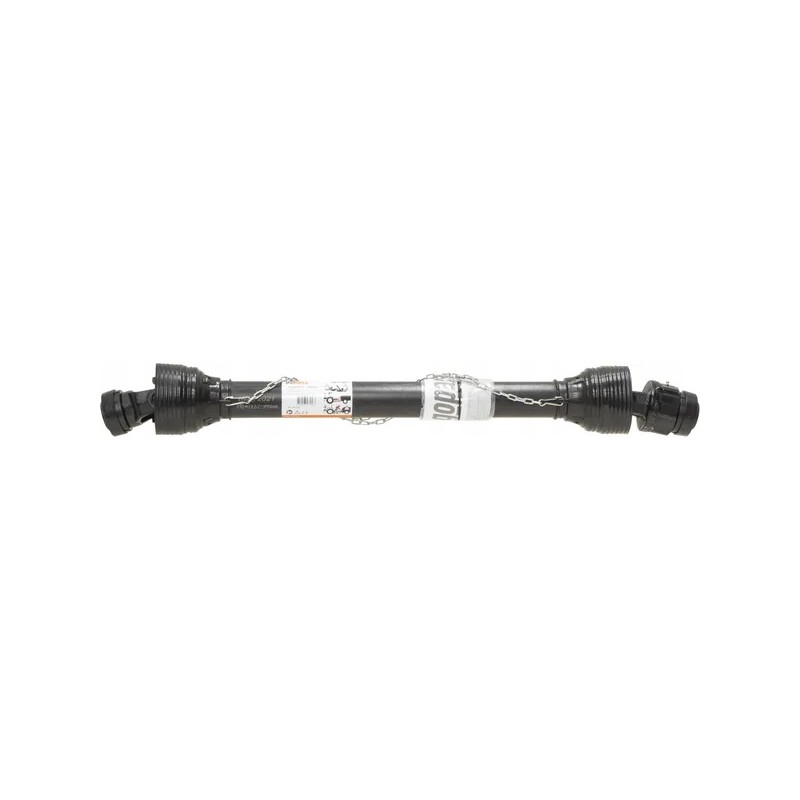

PTO shaft 40 l 1210 mm, single clutch

PTO shaft 40 L=1210 mm, gopart one-way clutch

Part number: K. PTO40Y21T1210ORCGP

EAN: 8719493072853

Unit: Piece

Features: Meets all international safety requirements

Technical information:

PTO40

Max. dynamic power 540 rpm: 26kW, 460Nm

Max. dynamic power 1000 rpm: 40kW, 380Nm

PTO50

Max. dynamic power 540 rpm: 35kW, 620Nm

Max. dynamic power 1000 rpm: 54kW, 515Nm

PTO60

Max. dynamic power 540 rpm: 47kW, 830Nm

Max. dynamic power 1000 rpm: 74kW, 710Nm

Benefits: Cheap alternative in the low power range

Outer diameter of the connection on the tractor side: 1-3/8inch

Number of connection keys on the tractor side: 6

Connection type on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Outer diameter. machine side connections: 1-3/8 inch

Number of machine side connection keys: 6

Machine side connection type: Flanged gate valve

Side accessories machines: One-way clutch

Shaft size: PTO 40

Length: 1210mm

Power at 540 rpm: 26kW

Power at 1000 rpm: 40kW

Diameter of the cross arm sleeve on the tractor side: 27mm

Length of the cross head on the tractor side: 74.6mm

Diameter of the cross head sleeve on the machine side : 27mm

Length of the cross on the machine side: 74.6mm

Coupling type: n/a

Outer pipe wall thickness: 3.4mm

Larger external diameter of the outer tube: 43.5mm

Wall thickness of the internal tube: 4.5mm

Larger external diameter of the internal tube: 36mm

Tube profile shape: Triangular

Dynamic torque max.: 780N m
