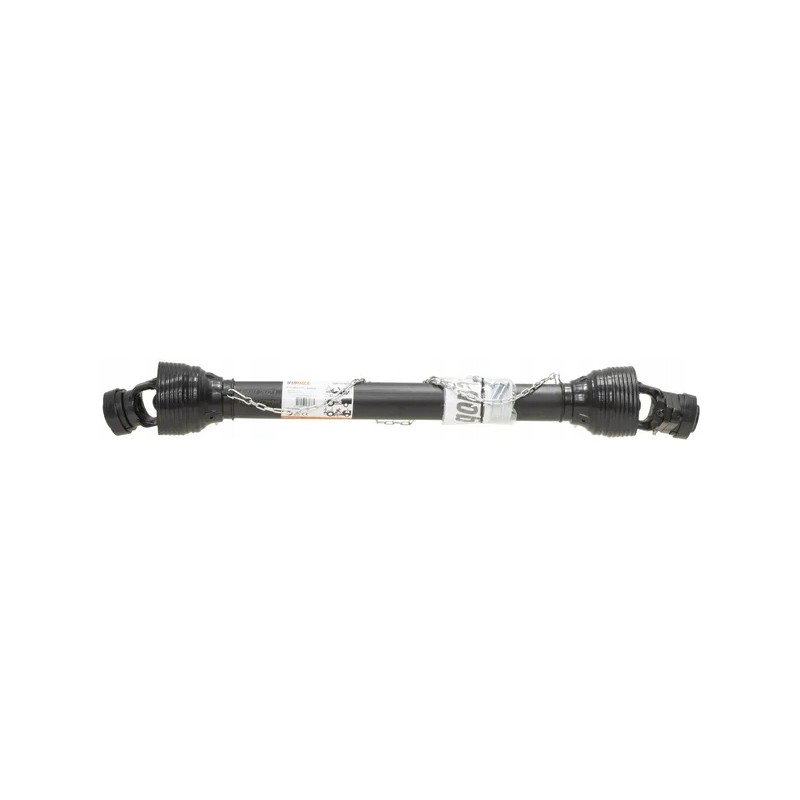

Pto shaft 50 l 860 mm clutch with pin

PTO shaft 50 L=860 mm, gopart shear pin coupling

Part number: K. PTO50Y21T860SBGP

EAN: 8719493074246

Unit: Piece

Properties: Meets all international safety requirements

Technical information:

PTO40

Max. dynamic power 540 rpm: 26kW, 460Nm

Max. dynamic power 1000 rpm: 40kW, 380Nm

PTO50

Max. dynamic power 540 rpm: 35kW, 620Nm

Max. dynamic power 1000 rpm: 54kW, 515Nm

PTO60

Max. dynamic power 540 rpm: 47kW, 830Nm

Max. dynamic power 1000 rpm: 74kW, 710Nm

Benefits: Cheap alternative in the low power range

Outer diameter of the connection on the tractor side: 1-3/8inch

Number of connection keys on the tractor side: 6

Type of connection on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Outer diameter of the connection machine side: 1-3/8 inch

Number of machine side connection keys: 6

Machine side connection type: Flanged gate valve

Machine side accessories : Shear pin clutch

Shaft size: PTO 50

Length: 860mm

Power at 540 rpm: 35kW

Power at 1000 rpm: 54kW

Diameter of the cross arm sleeve on the tractor side: 30.2mm

Length of the cross head on the tractor side: 79.6mm

Diameter of the cross head sleeve on the machine side: 30.2mm

Length of the cross on the machine side: 79.6mm

Coupling type: n/a

Outer pipe wall thickness: 3mm< p>

Larger external diameter of the outer tube: 51.5mm

Wall thickness of the internal tube: 3.8mm

Larger external diameter of the internal tube: 45mm

Pipe profile shape: Triangular

Max. static torque: 220N m
