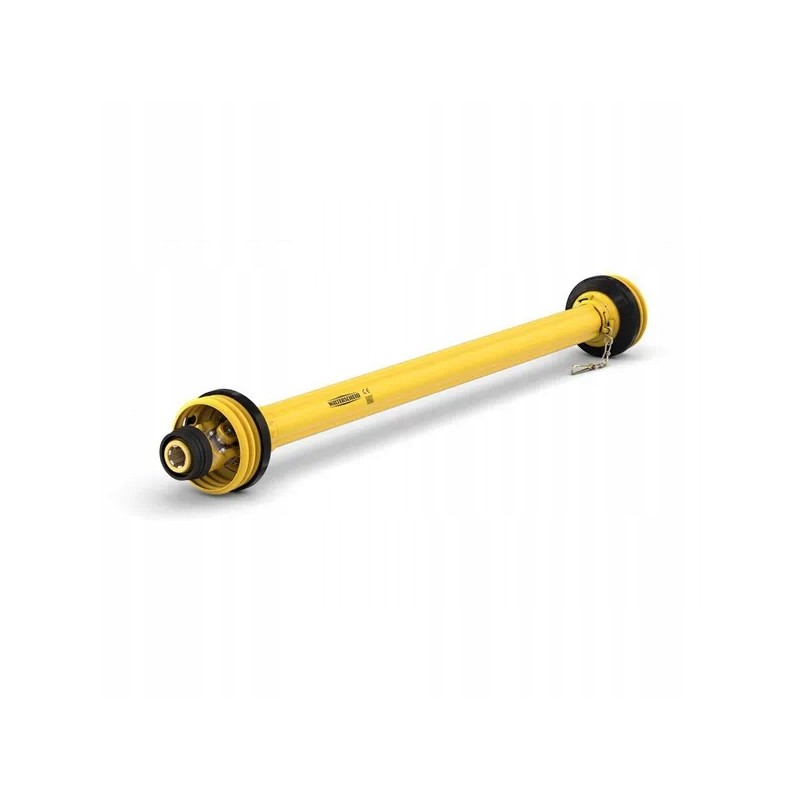

Cardan shaft w2500 l 560 mm walterscheid

PTO shaft W2500 L=560 mm Walterscheid

Part number: K. W2500560

EAN: 8435194030090

Unit: Piece

Application:

Rudder

Soil cultivation machines

Wood chippers

Features:

Thrust side, extendable slide 1-3/8' (6)

Machine side, sliding pin 1-3/8' (6)

Grease interval 50 to 100 hours

Meets the requirements of the EC directive 89/392 EEG

Meets the requirements of the safety standard EN12965

CE marking is present

Technical information:

Follow the instructions Walterscheid

Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm

Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm

Values at a deflection angle of 5° and a service life of 1000 hours

LZ = length after insertion in mm, from cross to cross< p>

Outer diameter of the connection from the tractor side: 1-3/8 inch

Number of keys in the connection from the tractor side: 6

Consisting of:

PTO shaft with cover

Declaration of conformity

Operating manual

Connection type on the tractor side: Automatic flange gate valve

Accessories on the side tractor: Quick-connect fork

Outer diameter of the connection on the machine side: 1-3/8 inch

Number of keys in the connection on the machine side: 6

Type of connection on the side machines: Flanged gate valve

Machine side accessories: Quick-connect fork

Shaft size: W2500

Length: 560mm

Power at 540 rpm /min: 66kW

Power at 1000 rpm: 102kW

Diameter of the cross sleeve on the tractor side: 36mm

Length of the cross on the tractor side: 89mm

Diameter of the cross sleeve on the machine side: 36mm

Length of the cross on the machine side: 89mm

Coupling type: n/a

Pipe profile type outer tube: S5

Outer tube wall thickness: 4.5mm

Larger outer diameter of the outer tube: 61mm

Internal tube profile type: S4

Larger outer diameter of the inner pipe: 51mm

Pipe profile shape: Star

Max. static torque: 6000N m

Cover type : ST25

OE reference number: 1800067
