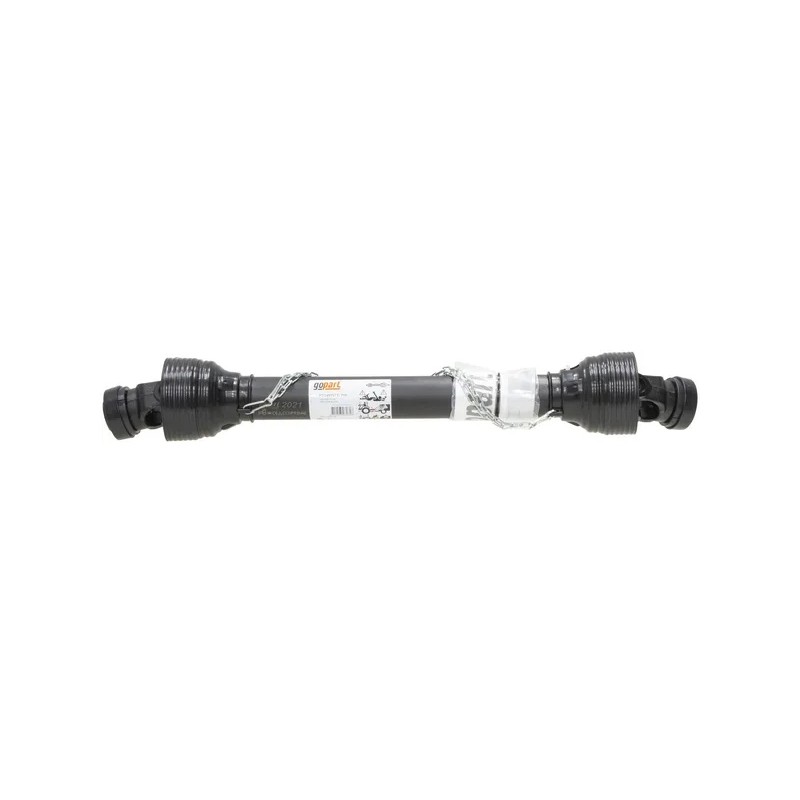

Articulated shaft pto 60 l 1010 mm gopart

PTO shaft 60 L=1010 mm gopart

Part number: K. PTO60Y21T1010GP

EAN: 8719493067989

Unit: Piece

Description product: Standard connecting shaft is a favorable alternative for machines in the low power range

Specifications: Good value for money

Advantages: Good quality at a favorable price

Details product:

Meets all international safety requirements

Supplied with "CE" marking

Max. dynamic power 540 rpm: 47kW - 830Nm

Max. dynamic power 1000 rpm: 74kW - 710Nm

Application:

Wood splitter

Field sprayer

Sowers of artificial fertilizers

Fertilizer seeders

Features:

Meets all international safety requirements

CE marked

Technical information:

Max. dynamic power 540 rpm: 47kW, 830Nm

Max. dynamic power 1000 rpm: 74kW, 710Nm

Benefits: A favorable alternative in the low performance range

Outer diameter of the connection on the tractor side: 1-3/8inch

Number of connection keys on the tractor side: 6

Type of connection on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Outer diameter of the connection machine side: 1-3/8 inch

Number of machine side connection keys: 6

Machine side connection type: Flanged gate valve

Machine side accessories : Quick-connect fork

Shaft size: PTO 60

Power at 540 rpm: 47kW

Power at 1000 rpm: 74kW

Diameter of the cross sleeve on the tractor side: 30.2mm

Length of the cross on the tractor side: 91.4mm

Diameter of the cross sleeve on the machine side: 30.2mm

Length of the cross on the machine side: 91.4mm

Coupling type: n/a

Wall thickness of the outer pipe: 4mm

Larger external diameter of the outer pipe : 54mm

Wall thickness of the inner pipe: 5.5mm

Larger outer diameter of the inner pipe: 45mm

Pipe profile shape: Triangular

Related articles you can find in our other offers:

Spare parts

Fork, quick-connect with retaining ring, 1-3/8' - 6 cutters, PTO 60 gopart PTO960Y21DY1386GP< p>

Shaft cross, Ø 30.2x91.4 mm, 60 gopart PTO960CJGP

Fork, for a profiled pipe, for a spring pin, 45x45 mm, PTO 60 gopart PTO960ITYGP

Internal triangular profiled pipe PTO 60 internal Ø 34 external Ø 45x5.5 mm L=1 m gopart PTO960IPT1000GP

Triangular external profiled pipe PTO 60 internal Ø 46 external Ø 54x4 mm L=1 m gopart PTO960OPT1000GP

Fork, for a profiled pipe, for a spring pin, 54x54 mm, PTO 60 gopart PTO960OTYGP

Shaft cover PTO 60 L=1210 mm PTO960SG1210GP

Accessories

Overrunning clutch, PTO60 PTO960Y21ORCGP

Shear pin overload clutch, PTO60 PTO960Y21SBCGP

PTO 60 friction disc clutch PTO960FCGP
