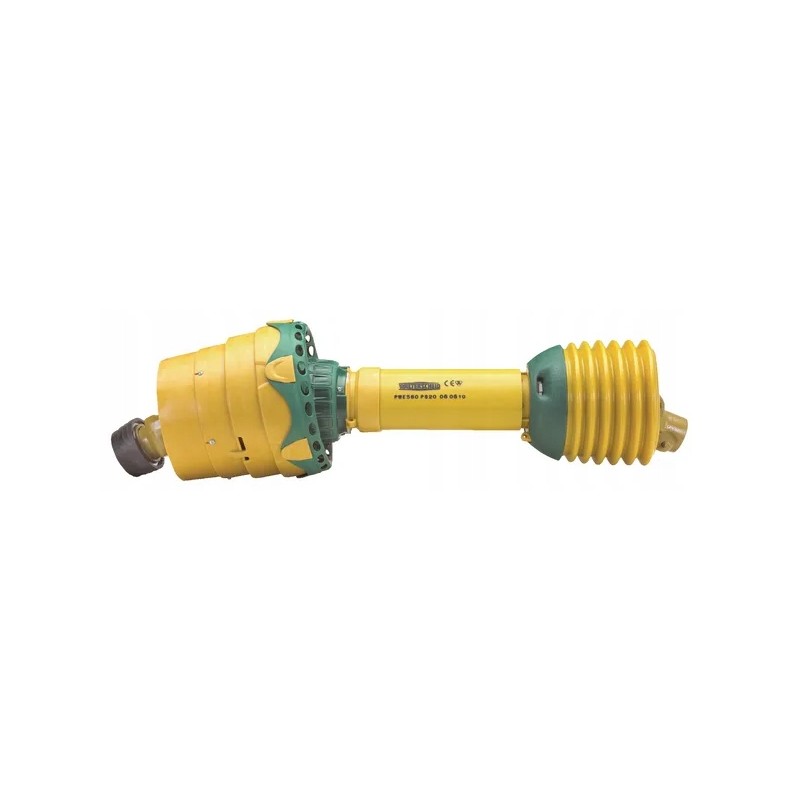

Wide angle joint shaft

Wide angle drive shaft

Part number: K. PWE48012105714218

EAN:

Unit: Piece

Specifications:

Compact joint bearing, built into the centering system

The profiled safety tube does not allow for simultaneous rotation.

The sealed profile tube prevents dirt from entering.

Can be quickly remove the cover

No safety chain required on the tractor side

Application:

Feed wagon

Slurry barrel

Harvesters

Loader wagons

Features:

Lubrication interval: max. 60 hours

Complies with the requirements of EC Directive 89/392 EEG

Meets the requirements of the EN12965 safety standard

CE marking is present

Technical information:

Maximum deflection angle for long-term use: 25º

The deflection angle can only be 80º for a short time

Max. dynamic capacity 540 rpm: 39 kW, 695 Nm

Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm

Values at a deflection angle of 10° and a service life of 1000 hours

LZ = length after insertion, distance from the outside center. cross

Benefits:

Longer service life than standard drive shaft

Lower maintenance costs

Faster engagement

Consisting of:

Wide-angle drive shaft, single-sided, with protective tube

Declaration of conformity

Operating manual

Delivery without connection forks

Machine-side accessories: Shear pin coupling

Shaft size: PWE 480

Length: 1210mm

Cross-side sleeve diameter tractor - longer part: 27mm

Diameter of the cross arm sleeve on the tractor side: 32mm

Length of the cross arm on the tractor side - longer part: 94mm

Length of the cross arm on the tractor side : 76mm

Diameter of the cross sleeve on the machine side: 32mm

Length of the cross on the machine side: 76mm

Clutch type: KB61/20

Max. clutch torque: 2500N m

Cover type: PG20

OE reference number: 1694688
