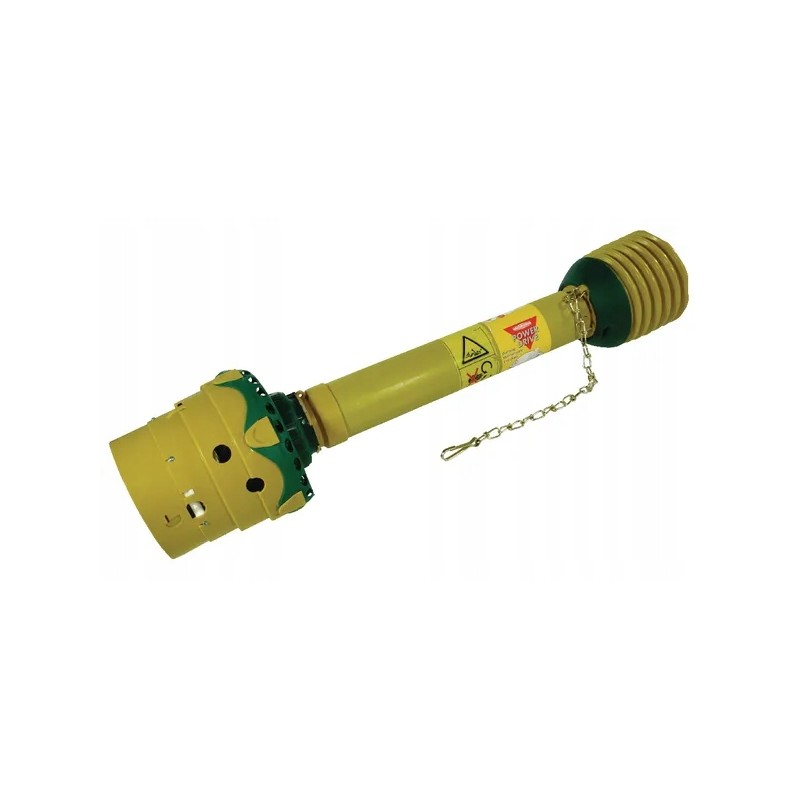

PTO shaft without forks pwe 480 l 1210 mm shaft

PTO shaft without forks PWE 480 L=1210 mm Walterscheid

Part number: K. PWE4801210S4S5OG

EAN:

Unit: Piece

Specifications:

Compact joint bearing, built into the centering system

Profiled safety tube prevents simultaneous rotation.

Sealed profiled tube prevents dirt from entering.< p>

Quickly removable cover

No safety chain required on the tractor side

Application:

Feed wagons

Barrel tankers

Combine harvesters

Self-loading wagons

Properties:

Lubrication frequency: max. 60 hours

Compliance with requirements EC directive 89/392 EEG

Meets the requirements of the EN12965 safety standard

The CE mark is present

Technical information:

Maximum deflection angle for long-term operation: 25º

The deflection angle can only be 80º

Max. dynamic capacity 540 rpm: 39 kW, 695 Nm

Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm

Values at a deflection angle of 10° and a service life of 1000 hours

LZ = length after insertion, distance from the outside center. cross

Benefits:

Longer service life than standard drive shaft

Lower maintenance costs

Faster engagement

Consisting of:

Wide-angle drive shaft, single-sided, with protective tube

Declaration of conformity

Operating manual

Delivery without connection forks

Delivery without cross kit on the wide angle side

Connection type on the tractor side: Wide angle without crosses

Accessories on the tractor side: n/a

Type of connection on the machine side: Cross

Accessories on the machine side: n/a

Shaft size: PWE 480

Length: 1210mm

Power at 540 rpm: 39kW

Power at 1000 rpm: 61kW

Diameter of the cross sleeve on the tractor side - longer part: 27mm

Diameter of the cross arm sleeve on the tractor side: 32mm

Length of the cross arm on the tractor side - longer part: 94mm

Length of the cross arm on the tractor side: 76mm

Diameter of the cross arm sleeve on the machine side: 32mm

Length of the cross on the machine side: 76mm

Outer pipe profile type: S5

Inner pipe profile type: S4LGA

Tube profile shape: Star

Max. static torque: 3000N m

Cover type: PG25

Reference number OE: 1113260
