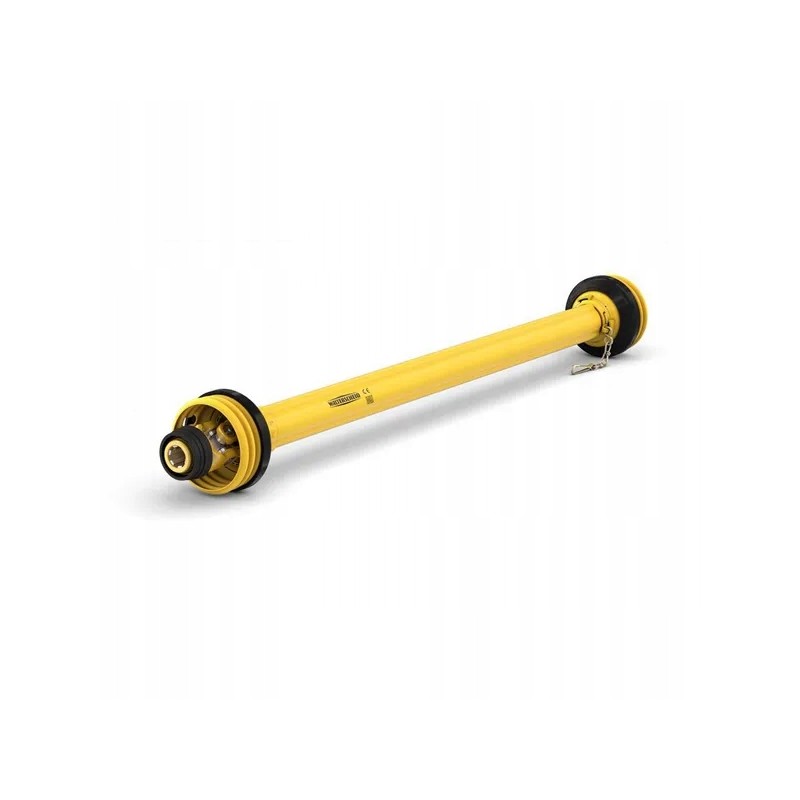

Cardan shaft w2400 l 1010 mm walterscheid

PTO shaft W2400 L=1010 mm Walterscheid

Part number: K. W24001010

EAN: 8435194029889

Unit: Piece

Application:

Mowers

Steer

Soil tillage machines

Features:

Thrust side, extendable slide 1- 3/8' (6)

Machine side, sliding pin 1-3/8' (6)

Lubrication interval from 50 to 100 hours

Compliance requirements of the EC directive 89/392 EEG

Meets the requirements of the safety standard EN12965

The CE mark is present

Technical information:

Follow the Walterscheid operating instructions

Max. dynamic capacity 540 rpm: 39 kW, 695 Nm

Max. dynamic capacity 1000 rpm: 61 kW, 580 Nm

Values at a deflection angle of 5° and a service life of 1000 hours

LZ = length after insertion in mm, from cross to cross< p>

Outer diameter of the connection from the tractor side: 1-3/8 inch

Number of keys in the connection from the tractor side: 6

Consisting of:

PTO shaft with cover

Declaration of conformity

Operating manual

Connection type on the tractor side: Flange gate valve

Accessories on the tractor side : Quick-connect fork

Outside diameter of the machine-side connection: 1-3/8 inch

Number of slots for the machine-side connection: 6

Machine-side connection type : Flanged gate valve

Machine side accessories: Quick-connect fork

Shaft size: W2400

Length: 1010mm

Power at 540 rpm/ min: 39kW

Power at 1000 rpm: 61kW

Diameter of the cross sleeve on the tractor side: 32mm

Length of the cross on the tractor side: 76mm

Diameter of the cross sleeve on the machine side: 32mm

Length of the cross on the machine side: 76mm

Coupling type: n/a

External pipe profile type .: 2a

Outer pipe wall thickness: 4mm

Larger outer diameter of the outer pipe: 57.5mm

Internal pipe profile type: 1b

Wall thickness of the inner pipe: 4.5mm

Larger outer diameter of the inner pipe: 49mm

Pipe profile shape: Lemon

Max. static torque .: 4000N m

Cover type: ST25

OE reference number: 1800060
