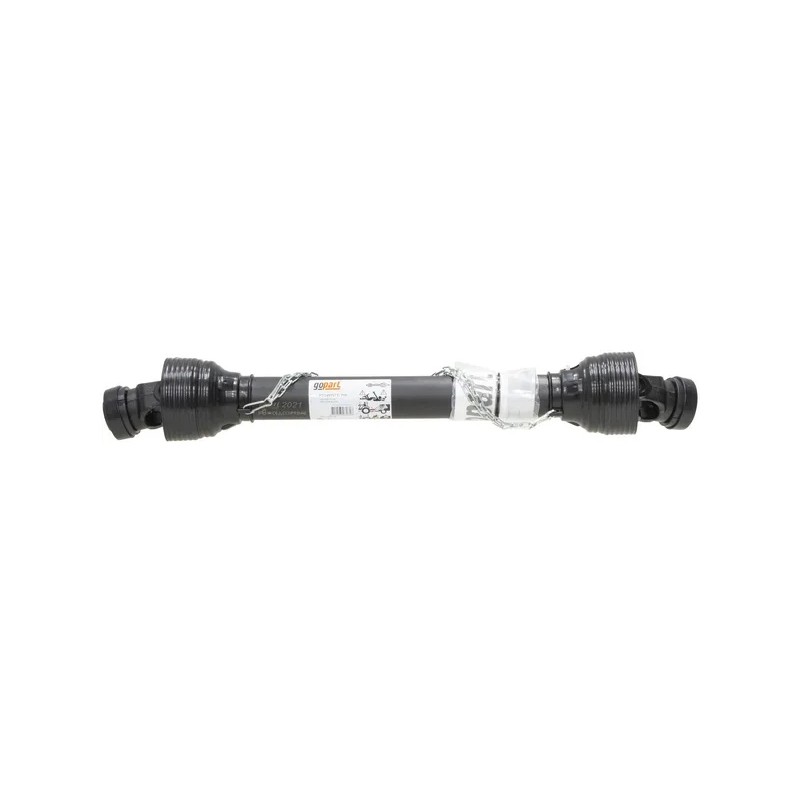

Articulated shaft pto 50 l 1010 mm gopart

PTO shaft 50 L=1010 mm gopart

Part number: K. PTO50Y21T1010GP

EAN: 8719493074512

Unit: Piece

Description product: A cost-effective alternative in the range of lower power equipment suitable for log splitters, field sprayers, fertilizer spreaders, manure spreaders, etc.

Specifications: Good price-quality ratio

Advantages : Good quality with favorable price

Product details:

Max. dynamic power 540 rpm: 35kW - 620Nm

Max. dynamic power 1000 rpm: 54kW - 515Nm

Meets all international safety requirements

Supplied with "CE" marking

Application:

Wood splitter

Field sprayer

Seeders for artificial fertilizers

Seeders for fertilizers

Features:

Meets all international safety requirements

CE marked

Technical information:

Max. dynamic power 540 rpm: 35 kW, 620 Nm< p>

Max. dynamic power 1000 rpm: 54 kW, 515 Nm

Benefits: A favorable alternative in the low performance range

Outer diameter of the connection on the tractor side: 1-3/8 inch

Number of connection keys on the tractor side: 6

Type of connection on the tractor side: Flange gate valve

Accessories on the tractor side: Quick-connect fork

Diameter external connection on the machine side: 1-3/8 inch

Number of keys on the machine side connection: 6

Type of connection on the machine side: Flanged gate valve

Accessories on the machine side: Quick-connect fork

Shaft size: PTO 50

Power at 540 rpm: 35kW

Power at 1000 rpm: 54kW

Diameter of the cross sleeve on the tractor side: 30.2mm

Length of the cross on the tractor side: 79.6mm

Diameter of the cross sleeve on the machine side: 30.2mm

Length of the cross on the machine side: 79.6mm

Coupling type: n/a

Outer pipe wall thickness: 3mm

Outer diameter. larger outer pipe: 51.5mm

Wall thickness of the inner pipe: 3.8mm

Larger external diameter of the inner pipe: 45mm

Pipe profile shape: Triangular< p>
