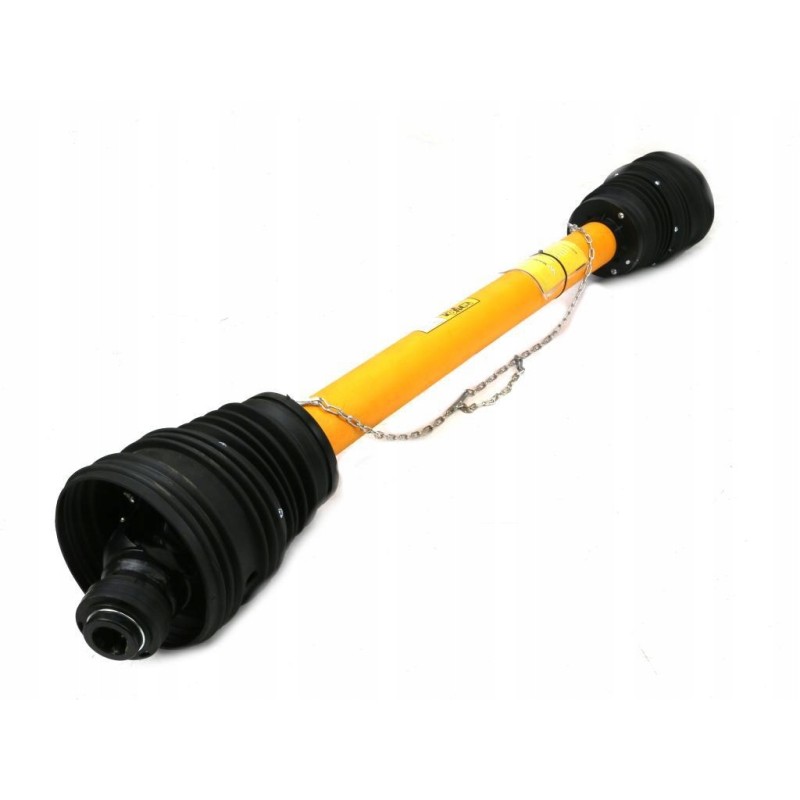

Articulated and telescopic shaft 1670 2270mm 830nm width

PTO shaft 1670-2270mm 830Nm wide Index W690901670Clutch: Wide-angle on both sides

Maximum length: 2270

Minimum length: 1670

Inner tube thickness: 45

Outer tube thickness: 54

Nominal power: 47 ( 64 )

Mounting to the machine: 1 3/8' Z6 '

Attachment to the tractor: 1 3/8' Z6 '

Torque: 830

Operating angle: Max 35° temporarily 80°

Bearing diameter: 30 .2

Height of the cross: 91.6

Type of telescopic connector: Triangular pipe

Works with: External fork - WR216290, WR216390, Internal pipe - WR2140600, Outer pipe - WR2141600, Housing - WR22961129,

Inner pipe wall thickness: 5.5

Outer pipe wall thickness: 4

Clutch disengaging power: None< p>

The shaft is made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: wide-angle with two pages

Inner tube thickness: 45mm

Outer tube thickness: 54mm

Nominal power: 47 ( 64 )KW (HP)

Machine attachment: 1 3/8' Z6' inch

Tractor attachment: 1 3/8' Z6' inch

Torque: 830Nm

Angle working: Max 35° temporarily 80°

Bearing diameter: 30.2mm

Height of the cross: 91.6mm

Type of telescopic connector: Triangular pipe

Minimum length: 1670mm

Maximum length: 2270mm

Works with: External fork - WR216290, WR216390, Inner pipe - WR2140600, Outer pipe - WR2141600, Housing - WR22961129,

Clutch disconnecting power: NoneNm

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness: 4mm

EAN 5902287204773< p>

* When ordering this product, you will receive a WARYŃSKI fragrance pendant for FREE! The Waryński company, using its many years of production experience in the industrial industry, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance to working in difficult conditions.

All products available in our store are new and unused.

Despite every effort, we cannot guarantee that the published photos, technical data and descriptions do not contain any omissions or errors.

If you have any doubts about the quality of the products received or possible discrepancies in appearance, please report it to us in an Allegro message. We will certainly make every effort to verify the problem and solve it, and above all, dispel your doubts.
