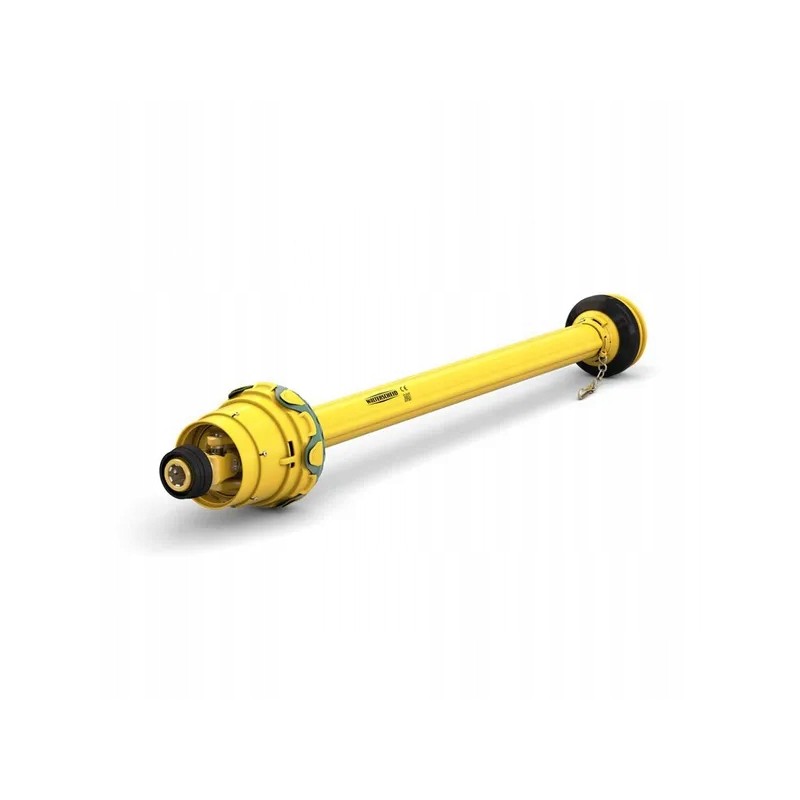

Wide-angle drive shaft WWE 2380 L=1210 mm Walterscheid

Part number: K. WWE23801210SD25

EAN: 8432970200753

Unit: Piece

Application:

Slurry tank

Field sprayers

Manure spreaders

Hay baler

Features: < p>

Tractor side 1-3/8' slider (6)

Machine side, sliding pin 1-3/8' (6)

Lubrication frequency: 8 hours

Meets the requirements of the EC directive 89/392 EEG

Meets the requirements of the EN12965 safety standard

CE marking is present

Technical information:

Maximum deflection angle for long-term use: 25º

The deflection angle can only be 80º for a short time

Max. dynamic power 540 rpm: 28 kW, 500 Nm

Max. dynamic power 1000 rpm: 44 kW, 415 Nm

Values at a deflection angle of 10° and a service life of 1000 hours

LZ = length after insertion, distance from the outside center. cross

Outer diameter of the connection from the tractor side: 1-3/8 inch

Number of keys in the connection from the tractor side: 6

Consisting of:

Wide-angle drive shaft, single-sided, with protective tube

Declaration of conformity

Operating manual

Connection type on the tractor side: Flange gate valve

Tractor-side accessories: Quick-connect fork

Outer diameter of the machine-side connection: 1-3/8 inch

Number of connection keys on the machine-side: 6

Connection type on the machine side: Flanged gate valve

Accessories on the machine side: Quick-connect fork

Shaft size: WWE 2380

Length: 1210mm

Power at 540 rpm: 28kW

Power at 1000 rpm: 44kW

Diameter of the cross sleeve on the tractor side - longer part: 24mm

Diameter of the cross arm sleeve on the tractor side: 27mm

Length of the cross arm on the tractor side - longer part: 91mm

Length of the cross arm on the tractor side: 75mm

Diameter of the cross arm sleeve on the machine side: 27mm

Length of the cross on the machine side: 75mm

Coupling type: n/a

Outer pipe profile type: 2aG

Wall thickness of the outer pipe: 3.5mm

Larger diameter of the outer pipe: 57.5mm

Profile type of the inner pipe: 1bGA

Thickness inner pipe walls: 4.5mm

Larger outer diameter of the inner pipe: 49mm

Pipe profile shape: Lemon

Max. static torque: 2500N m

Cover type: ST25

OE reference number: 1800096
