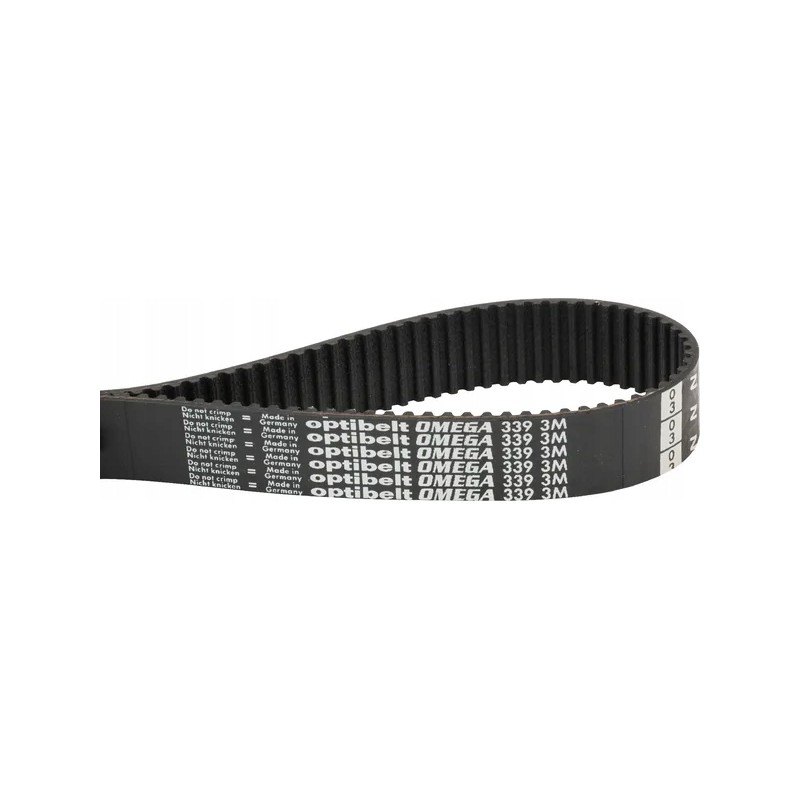

Omega end timing belt

Omega end timing belt

Part number: K. 3M33915

EAN: 4014486041064

Unit: Art

Product Description: The Omega standard belt meets medium performance requirements for slow and fast rotating drives without particular shock loads. The back of the strap is made of a flexible polychloroprene blend that protects the core layer from environmental influences. The core layer consists of pairs of fiberglass elements twisted in opposite directions. It has good flexural properties, low elasticity and high tensile strength. Like the back of the belt, the teeth are made of a polychloropene compound that provides high shear strength, and the polyamide material protects the teeth from early wear and prevents chipping. The low coefficient of friction ensures low operating temperatures and reduces noise levels.Show more

Advantages:

Accurate and smooth operation

Low noise level

Wide range of applications

Maintenance-free

Reliable

Product details:

Fits standard HTD and RPP wheels

Used in industries, vehicles, office equipment and home appliances, among others

Profile: 3M

Width: 15mm

Base length: 339mm

Tooth pitch: 3mm

Number of teeth: 113

Height: 2.3mm

Working speed max.: 60m/s

Material: Neoprene

Operating temperature max.: 100°C

Operating temperature min.: -30°C

Weight: 0.036kg/m

Material: Neoprene
