Wide angle joint shaft WWE 2380 l 1010 mm shaft

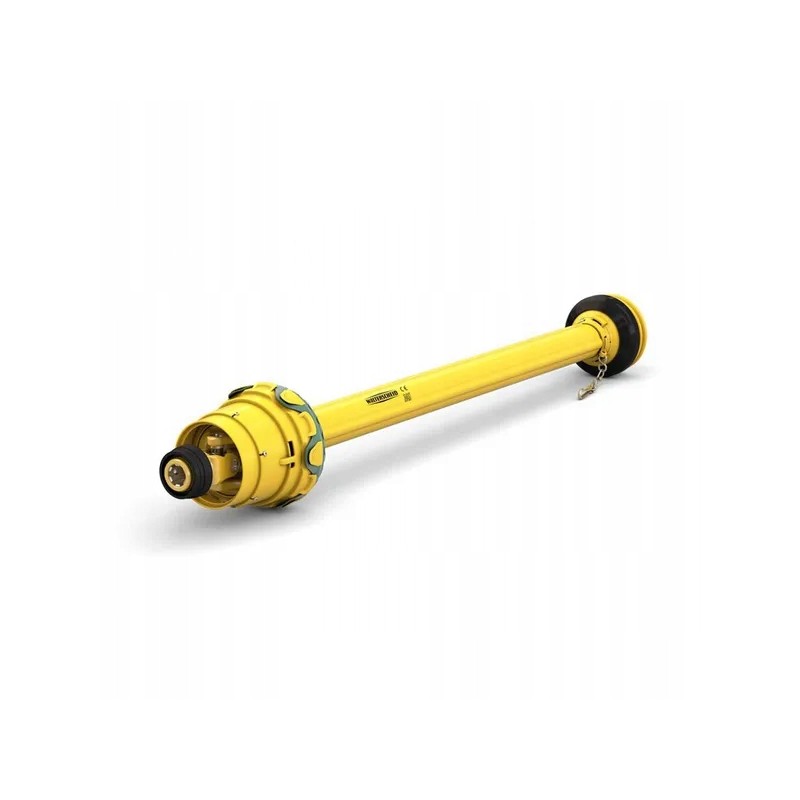

Wide-angle drive shaft WWE 2380 L=1010 mm Walterscheid

Part number: K. WWE23801010

EAN: 8435194030403

Unit: Piece

Application:

Slurry tank

Field sprayers

Manure spreaders

Hay baler

Features: < p>

Tractor side 1-3/8' slider (6)

Machine side, sliding pin 1-3/8' (6)

Lubrication frequency: 8 hours

Meets the requirements of the EC directive 89/392 EEG

Meets the requirements of the EN12965 safety standard

CE marking is present

Technical information:

Maximum deflection angle for long-term use: 25º

The deflection angle can only be 80º for a short time

Max. dynamic power 540 rpm: 28 kW, 500 Nm

Max. dynamic power 1000 rpm: 44 kW, 415 Nm

Values at a deflection angle of 10° and a service life of 1000 hours

LZ = length after insertion, distance from the outside center. cross

Outer diameter of the connection from the tractor side: 1-3/8 inch

Number of keys in the connection from the tractor side: 6

Consisting of:

Wide-angle drive shaft, single-sided, with protective tube

Declaration of conformity

Operating manual

Connection type on the tractor side: Flange gate valve

Tractor-side accessories: Quick-connect fork

Outer diameter of the machine-side connection: 1-3/8 inch

Number of connection keys on the machine-side: 6

Type of connection on the machine side: Flanged gate valve

Accessories on the machine side: Quick-connect fork

Shaft size: WWE 2380

Length: 1010mm

Power at 540 rpm: 28kW

Power at 1000 rpm: 44kW

Diameter of the cross sleeve on the tractor side - longer part: 24mm

Diameter of the cross arm sleeve on the tractor side: 27mm

Length of the cross arm on the tractor side - longer part: 91mm

Length of the cross arm on the tractor side: 75mm

Diameter of the cross arm sleeve on the machine side: 27mm

Length of the cross on the machine side: 75mm

Coupling type: n/a

Outer pipe profile type: 1G

Wall thickness of the outer pipe: 2.7mm

Larger diameter of the outer pipe: 48mm

Profile type of the inner pipe: OvGA

Pipe wall thickness internal diameter: 4mm

Larger external diameter of the internal pipe: 40mm

Pipe profile shape: Lemon

Max. static torque: 2500N m

Cover type: ST15

Reference number OE: 1610120

Related articles you can find in our other offers:

Spare parts

Half cover, outer ST15 Flexo 1113600

Half cover, inner 1113641

Shaft cross, Ø 27x75.0 mm / Ø 24x91.0 mm, 2300 Walterscheid 2100141

Fork, quick-connect with retaining ring, 1-3/8' - 6 cutters, W2300/P300/W300E Walterscheid 218330

OvGA lemon coated profile pipe, internal Ø. 32 external Ø 40x34.5x4 mm L=1.4 m Walterscheid 7511911400

Lemon coated profile pipe 1G internal Ø 42.6 External Ø 48x41x2.7 mm L=1.4 m Walterscheid 7516001400

Securing cone Sc15 L=172 W2380 850001

Shaft cross, Ø 24x75.0 mm / Ø 27x91.0 mm , 2380 Walterscheid 210600

Fork, quick connect with retaining ring, 1-3/8' - 6 cutters, W2380 Walterscheid 2183830

Fork, double, 24 mm, W2380 Walterscheid 219105
